5G Multi-band Mobile Antenna | 698-2700 MHz | Black Stainless Steel | Spring Mount by Matchmaster
5G multi-band mobile antenna with 698-2700 MHz range and black stainless steel spring mount—ideal for telecommunications and home network enhancement. Built for enhanced connectivity, with durable weather-resistant design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

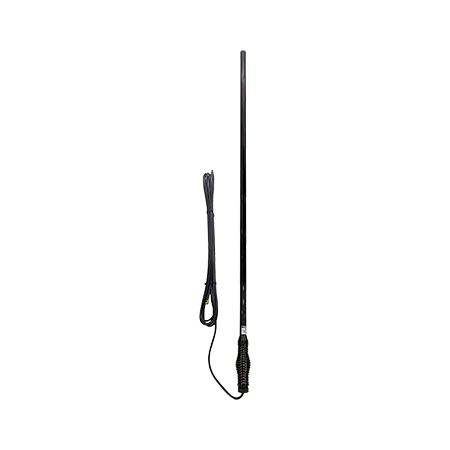

Product Name/Title: 5G Multi-band Mobile Cellular Antenna with Black Stainless Steel Spring Mount Base
Brand: Matchmaster
SKU: 56MM-5G11-M
Alternatively Known As: 5G Multi-band Vehicle Antenna, Mobile Cellular Antenna, Omnidirectional 5G Antenna, 5G/4G/3G Multi-band Antenna
Technical Specifications
- Frequency Bands: 690 – 960 MHz, 1710 – 2700 MHz, 3500 – 3700 MHz
- Gain: 6 dBi (690 – 960 MHz), 3 dBi (1710 – 2700 MHz), 3 dBi (3500 – 3700 MHz)
- Impedance: 50 Ohm
- VSWR: < 2:1
- Radiation Pattern: Omnidirectional
- E Plane 3dB Beamwidth: 20 degrees
- Termination: SMA Plug with 5m RG58 low loss cable
- Construction: Fiberglass Radome with black coated stainless steel spring mount base
- Dimensions (H x L x W): 16mm x 905mm x 35mm
- Weight: 0.75 kg
Key Features
- 5G/4G/3G multi-band omnidirectional antenna
- Black powder-coated stainless steel spring mount base for vehicle durability
- 5m low loss RG58 cable terminated in low loss SMA plug
- 6.0 dBi gain @ 690-960 MHz, 3.0 dBi gain @ 1710-2700 and 3500-3700 MHz
- Factory tuned with no further tuning required
- Fibreglass and thick-walled radome construction
- Simple and easy to use and install
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal antenna performance and secure mounting.
Applications
- Mobile applications including vehicles, trains, caravans, and boats
- Cellular and 2-way radio communication systems requiring multi-band antenna coverage
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces the need for multiple antennas, minimizing material use and waste
- Durable construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 5G Multi-band Mobile Cellular Antenna with Black Stainless Steel Spring Mount Base is available now for immediate purchase. Ideal for mobile and vehicular communication applications.
