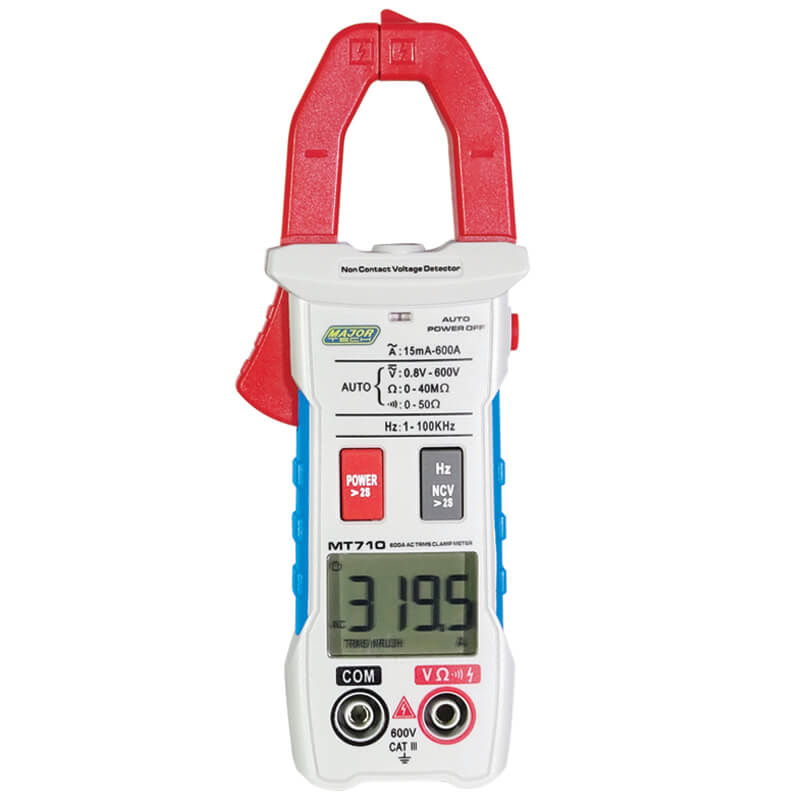

600A AC Clamp Meter | True RMS Measurement | CAT III 600V Safety Rating | Large Backlit LCD by Majortech
The 600A AC Clamp Meter features true RMS measurement and a CAT III 600V safety rating—ideal for electricians and HVAC technicians. With a large backlit LCD display and smart AUTO mode, it ensures accurate readings for electrical diagnostics and troubleshooting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 600A AC Clamp Meter | True RMS Measurement | CAT III 600V Safety Rating | Large Backlit LCD by Majortech
Brand: Majortech
SKU: MT710
Alternatively Known As: 600A AC Clamp Meter, True RMS Clamp Meter, Digital Clamp Meter, Electrical Clamp Meter, MT710 Clamp Meter
Technical Specifications
- Function: DC Voltage, Range: 0.001V – 600V, Resolution: 1mV, Accuracy: ±(0.5% + 3 Digits)
- Function: AC Voltage, Range: 0.001V – 600V, Resolution: 1mV, Accuracy: ±(1% + 3 Digits)
- Function: Resistance, Range: 0.001KΩ – 40MΩ, Resolution: 0.001KΩ, Accuracy: ±(0.5% + 3 Digits)
- Function: Frequency, Range: 0.001Hz – 100kHz, Resolution: 0.001Hz, Accuracy: ±(0.1% + 2 Digits)
- Sampling: Fast sampling time
- Display: Large backlit LCD
- Safety Rating: CAT III 600V
- Dimensions (H x L x W): 180mm x 40mm x 70mm
- Weight: 0.3 kg
Key Features
- CAT III 600V safety rating
- True RMS measurement for accurate AC readings
- Large backlit LCD display for easy reading
- Smart AUTO mode for automatic identification of DC voltage, AC voltage, resistance, and continuity
- Non-contact voltage detection (NCV) with buzzer alert
- Measures AC/DC voltage up to 600V, frequency, resistance, inrush current, and peak voltage
- Data hold function
- Built-in flashlight for use in dimly lit areas
- Compact and modern housing design
Professional Installation Requirements
- No professional installation required; however, users should have basic electrical knowledge to operate safely.
Applications
- Electricians for electrical measurements and troubleshooting
- HVAC technicians for system diagnostics
- Students studying electrical engineering and related fields
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient design reduces battery consumption
- Durable construction minimizes electronic waste through extended product life
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT710 600A AC Clamp Meter is available now for immediate purchase. Ideal for electrical measurement and diagnostics in residential and industrial applications.
