Home/Electrical/Tools/Test Equipment/Clamp Meters/600A AC/DC Clamp Meter | 600V Voltage Measurement | Large Backlit LCD | Smart AUTO Mode by Majortech

Trade Discount 22%

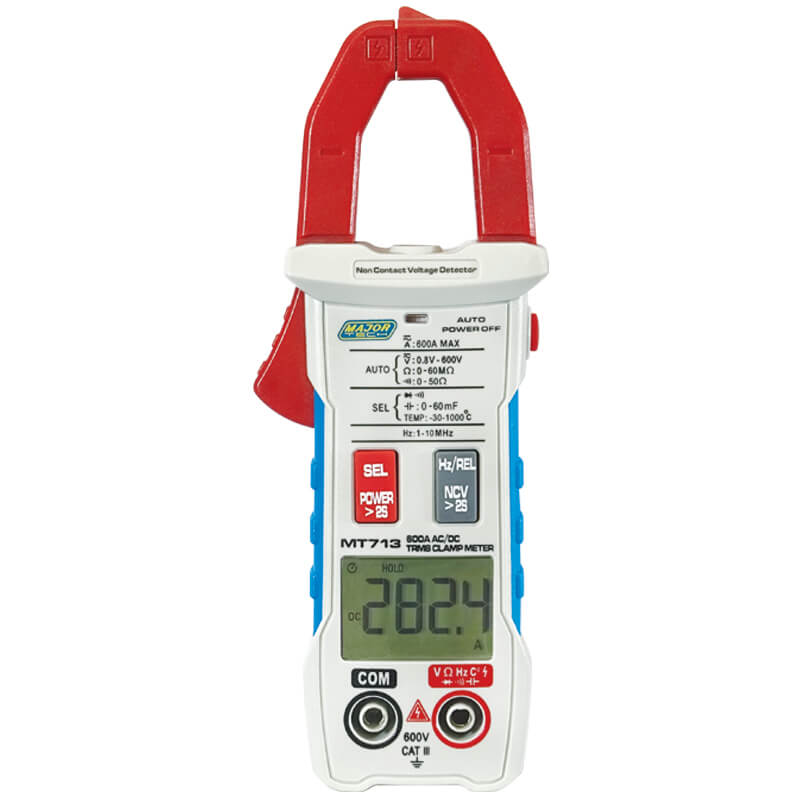

600A AC/DC Clamp Meter | 600V Voltage Measurement | Large Backlit LCD | Smart AUTO Mode by Majortech

BRAND: Major Tech

SKU: MT713

$162.60 List price: $209.30

+ −

30 Days Return Delivery Options

The 600A AC/DC clamp meter offers precise 600V voltage measurement and a large backlit LCD for easy reading—ideal for electricians and HVAC technicians. Built for accurate diagnostics, it features a smart AUTO mode for automatic identification of voltage, resistance, and continuity.

Description

Product Name/Title: 600A AC/DC Clamp Meter | 600V Voltage Measurement | Large Backlit LCD | Smart AUTO Mode by Majortech

Brand: Majortech

SKU: MT713

Alternatively Known As: Clamp Meter, AC/DC Clamp Meter, Digital Clamp Meter, Current Clamp Meter, Electrical Clamp Meter, MT713 Clamp Meter

Technical Specifications

DC Voltage Accuracy: ±(0.5%+3)
AC Voltage Range: 6-600V
AC Voltage Accuracy: ±(1.0%+3)
DC Current Range: 60-600A
DC Current Accuracy: ±(2.0%+30)
AC Current Range: 60-600A
AC Current Accuracy: ±(2.0%+30)
Resistance Range: 600Ω-60MΩ
Capacitance Range: 6nF-60mF
Frequency Range: 6Hz-10MHz
Frequency Accuracy: ±(0.1%+2)
Temperature Range: -30°C to 1000°C
Temperature Accuracy: ±(2.5%+5)
Digital Display: 6000 Count
Update Rate: 3 times/second
Material: ABS
TRMS Reading: Yes
Data Hold: Yes
Auto Power Off: Yes
Power Supply: 2 x 1.5V AA Batteries
Dimensions (H x L x W): 172mm x 32mm x 64mm
Weight: 0.161 kg

Key Features

600A AC/DC current measurement
Large backlit LCD display for easy reading
Smart AUTO mode for automatic identification of DC voltage, AC voltage, resistance, and continuity
Built-in Non-Contact Voltage (NCV) detector with buzzer alert
Measures voltage up to 600V AC/DC, frequency, resistance, temperature, capacitance, inrush current, and peak voltage
Data hold function and built-in flashlight for use in dimly lit areas
True RMS (TRMS) reading for accurate AC measurements
Auto power off to save battery life

Professional Installation Requirements

No professional installation required. Suitable for use by qualified electricians and trained technicians.

Applications

Electricians for electrical measurements and diagnostics
HVAC technicians for system maintenance
Students studying electrical engineering and related fields
Residential electrical testing and troubleshooting

Standards & Compliance

AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Auto power off feature conserves battery life reducing waste
Accurate measurements help optimize electrical system efficiency

Warranty Information

Standard manufacturer warranty applies. Please refer to Majortech warranty policy for details.

Available Now

The Majortech MT713 600A AC/DC Clamp Meter is available now for immediate purchase. Ideal for electrical testing and diagnostics in residential and industrial applications.
