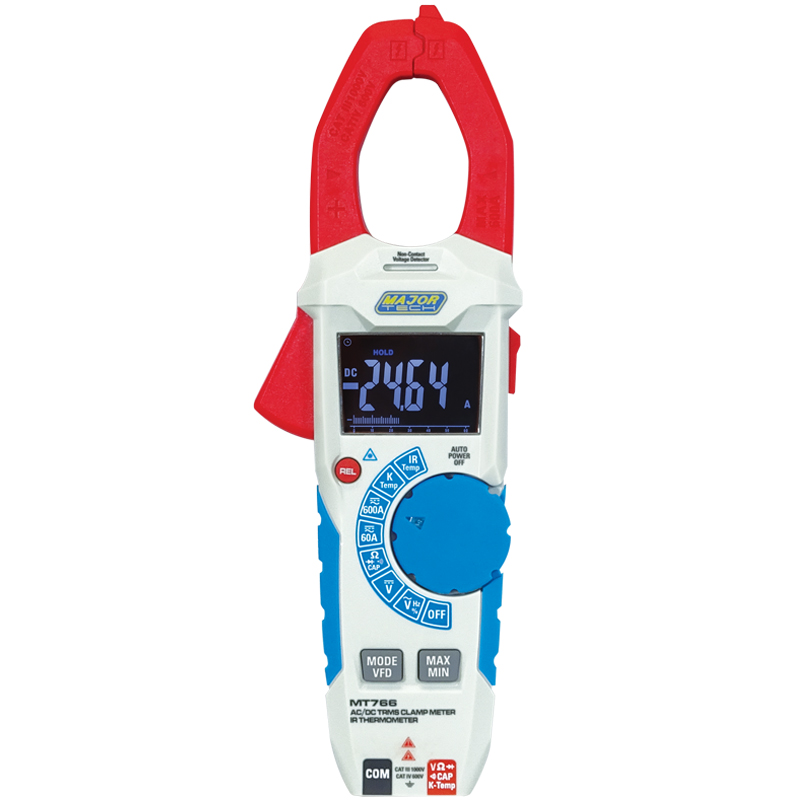

600A AC/DC IR Thermometer Clamp Meter | Infrared Measurement | True RMS | Non-Contact Voltage Detection by Majortech
The 600A AC/DC IR Thermometer Clamp Meter is designed for accurate electrical measurements, featuring infrared temperature measurement, true RMS functionality, and non-contact voltage detection. Ideal for electricians and HVAC technicians, it ensures safety and efficiency in diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 600A AC/DC IR Thermometer Clamp Meter | Infrared Measurement | True RMS | Non-Contact Voltage Detection by Majortech
Brand: Majortech
SKU: MT766
Alternatively Known As: Digital Clamp Meter with IR Thermometer, AC/DC Clamp Meter, Infrared Thermometer Clamp Meter, HVAC Clamp Meter, Electrical Clamp Meter
Technical Specifications
- AC Current Range: 0.01A to 600A, Resolution: 10mA, Accuracy: ±(1.5% + 10 digits)
- DC Voltage Range: 1mV to 1000V, Resolution: 1mV, Accuracy: ±(0.8% + 4 digits)
- AC Voltage Range: 0.001V to 1000V, Resolution: 1mV, Accuracy: ±(1.5% + 5 digits)
- Resistance Range: 0.1Ω to 60MΩ, Resolution: 0.1Ω, Accuracy: ±(2.0% + 5 digits)
- Frequency Range: 0.001Hz to 9.999kHz, Resolution: 1mHz, Accuracy: ±(1.5% + 6 digits)
- Capacitance Range: 0.1nF to 99.99mF, Resolution: 0.1nF, Accuracy: ±(4.0% + 6 digits)
- Temperature K-Type Range: -20°C to 1000°C, Resolution: 0.1°C, Accuracy: ±(3°C + 3 digits)
- IR Temperature Range: -30°C to 350°C, Spot Ratio 4:1, Resolution: 0.1°C, Accuracy: ±(2°C + 2 digits)
- Duty Cycle Range: 20% to 80%, Resolution: 0.1%, Accuracy: ±(1.2% + 5 digits)
- Dimensions (H x L x W): 200mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- CAT IV 600V True RMS 600A AC/DC digital clamp meter
- Incorporates an Infrared Thermometer with 4:1 spot ratio
- Large 6000 count negative LCD display for fast sampling and high accuracy
- Measures AC/DC voltage up to 1000V, frequency, capacitance, and resistance
- K-Type thermometer input for temperature measurements up to 1000°C
- VFD function for stable voltage measurement in Variable Frequency Drives
- Non-contact voltage detection and built-in flashlight for dimly lit areas
- Relative mode for capacitance zero and DCV, ACV, ACA offset adjustment
- MAX/MIN and data hold functions
Professional Installation Requirements
- No professional installation required; however, training in electrical measurement safety is recommended for proper use.
Applications
- Electricians for electrical current and voltage measurements
- Maintenance professionals for equipment diagnostics
- HVAC technicians for temperature and electrical system checks
- Industrial and specialist electrical testing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient electrical diagnostics reducing energy waste
- Non-contact voltage detection improves safety and reduces equipment damage
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech 600A AC/DC IR Thermometer Clamp Meter MT766 is available now for immediate purchase. Ideal for electrical, maintenance, and HVAC applications.
