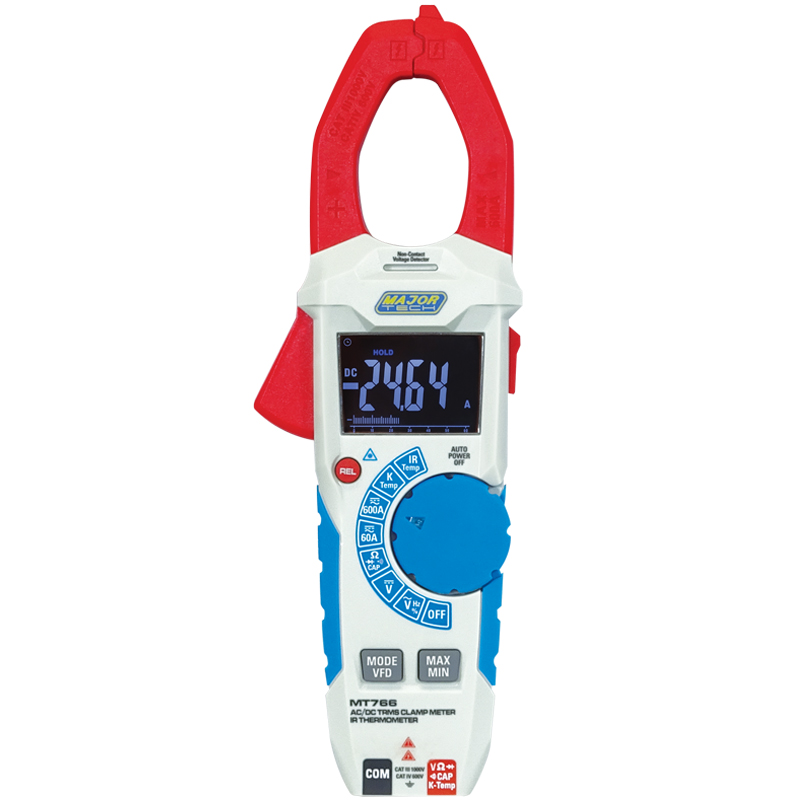

600A AC/DC True RMS Clamp Meter with IR Thermometer | CAT IV 600V | Non-Contact Voltage Detection | by Majortech
The 600A AC/DC True RMS Clamp Meter with IR Thermometer is perfect for electricians and HVAC professionals, offering precise measurements of voltage, current, frequency, and temperature. With a rugged design and features like non-contact voltage detection and a 6000 count LCD display, it ensures safety and accuracy in various applications, making it an essential tool for maintenance and diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 600A AC/DC True RMS Clamp Meter with IR Thermometer | CAT IV 600V | Non-Contact Voltage Detection | by Majortech
Brand: Majortech
SKU: MT766
Alternatively Known As: True RMS Clamp Meter with IR Thermometer, Digital Clamp Meter with Temperature Measurement, AC/DC Clamp Meter with Infrared Thermometer
Description
- DetailsThe MT766 is a CAT IV 600V True RMS 600A AC/DC digital clamp meter incorporating an Infrared Thermometer. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30°C to 350°C and there is a K-Type thermometer input for measurements up to 1000°C. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, MAX/MIN, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.Specifications:Specifications:FunctionRangeResolutionAccuracyDC Current0.01A – 600A10mA± (2.8% + 5 Digits)AC Current0.01A – 600A10mA± (1.5% + 10 Digits)DC Voltage1mV – 1000V1mV± (0.8% + 4 Digits)AC Voltage0.001V – 1000V1mV± (1.5% + 5 Digits)Resistance0.1Ω – 60MΩ0.1Ω± (2.0% + 5 Digits)Frequency0.001Hz – 9.999kHz1mHz± (1.5% + 6 Digits)Capacitance0.1nF – 99.99mF0.1nF± (4.0% + 6 Digits)Temperature K-Type-20 to 1000°C0.1°C± (3°C + 3 Digits)IR Temperature D:S 4:1-30.0 to 350.0°C0.1°C± (2°C + 2 Digits)Duty Cycle20% to 80%0,1%± (1.2% + 5 Digits)True RMS MeasurementsACV, ACAAC Bandwidth50 – 1000HzDigital Display6000BargraphYesNon-Contact Voltage (NCV)YesOverrange indicationYesContinuityYesDiode testYesJaw size33mmInput impedance>10MΩ DCV & >10MΩ VACMin MaxYesData HoldYesBack LightYesEnclosureDouble injection mouldingLow battery indicationYesPower source3 x LR03Weight350gDimensions239 x 66 x 44mmSafety SpecsIEC61010-1 CatIV 600V
Technical Specifications
- DC Current Range: 0.01A to 600A, Accuracy: ±(2.8% + 5 digits)
- AC Current Range: 0.01A to 600A, Accuracy: ±(1.5% + 10 digits)
- DC Voltage Range: 1mV to 1000V, Accuracy: ±(0.8% + 4 digits)
- AC Voltage Range: 0.001V to 1000V, Accuracy: ±(1.5% + 5 digits)
- Resistance Range: 0.1Ω to 60MΩ, Accuracy: ±(2.0% + 5 digits)
- Frequency Range: 0.001Hz to 9.999kHz, Accuracy: ±(1.5% + 6 digits)
- Capacitance Range: 0.1nF to 99.99mF, Accuracy: ±(4.0% + 6 digits)
- Temperature K-Type Range: -20°C to 1000°C, Accuracy: ±(3°C + 3 digits)
- IR Temperature Range: -30°C to 350°C, Accuracy: ±(2°C + 2 digits)
- Duty Cycle Range: 20% to 80%, Accuracy: ±(1.2% + 5 digits)
- True RMS measurement for AC Voltage and Current
- AC Bandwidth: 50 to 1000Hz
- Jaw Size: 33mm
- Input Impedance: >10MΩ for DCV and VAC
- Display: 6000 count negative LCD with bargraph
- Additional Features: Min/Max, Data Hold, Backlight, Continuity, Diode Test, Overrange indication
- Dimensions (H x L x W): 44mm x 239mm x 66mm
- Weight: 0.35 kg
Key Features
- CAT IV 600V True RMS 600A AC/DC clamp meter
- Incorporated Infrared Thermometer with 4:1 spot ratio
- Measures voltage, current, frequency, capacitance, resistance, and temperature
- K-Type thermometer input for high temperature measurements up to 1000°C
- VFD function for stable voltage measurement in variable frequency drives
- Non-contact voltage detection and built-in flashlight
- 6000 count negative LCD display with fast sampling
- Double moulded rubber housing for rugged durability
Professional Installation Requirements
- No professional installation required; however, users should have basic electrical knowledge to operate safely.
Applications
- Electricians for electrical measurements and troubleshooting
- Maintenance technicians for equipment diagnostics
- HVAC professionals for temperature and electrical system checks
- Industrial environments requiring high accuracy current and voltage measurements
Standards & Compliance
- Complies with AS/NZS 61010.1 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Enables precise electrical diagnostics reducing energy waste
- Non-contact voltage detection enhances safety and reduces risk of equipment damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech warranty terms for details.
Available Now
The Majortech MT766 600A AC/DC True RMS Clamp Meter with IR Thermometer is available for immediate purchase, ideal for electrical, maintenance, and HVAC applications.
