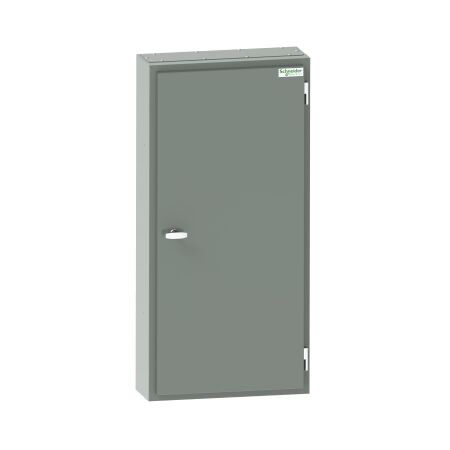

72 Pole Distribution Board | 160A Main Switch | IP56 Weatherproof | Grey by Clipsal
72 pole distribution board with 160A main switch and IP56 rating—ideal for industrial and commercial facilities. Built for robust electrical management, with weatherproof enclosure for outdoor installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MD Isobar standard distribution board, 72 poles, 160A main switch, 18mm, IP56, grey
Brand: Clipsal
SKU: MD272EM1
Alternatively Known As: Acti9 Distribution Board, Clipsal Isobar DB, 72 Pole Distribution Board
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 160 A
- Number of poles: 72 x 18 mm
- IP degree of protection: IP56
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Enclosure type: Weatherproof enclosure
- Network frequency: 50 Hz
- Dimensions (H x L x W): 1200mm x 225mm x 580mm
- Weight: 64 kg
Key Features
- 72 poles with a 160A main switch for extensive circuit management.
- IP56 rated for protection against dust and water ingress.
- Weatherproof enclosure suitable for outdoor installations.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings
- General: Any location requiring a robust distribution board for electrical management
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Acti9 MD Isobar Standard Distribution Board is available now for immediate purchase. Ideal for commercial and industrial applications requiring reliable electrical distribution.
