Making Trade Life Easy!

Home/Electrical/Switchboards/Distribution Boards/72 Pole Electrical Distribution Board | 250A Rated | IP66 Stainless Steel by Hager

Trade Discount 22%

DB, elite, 72Pole, No Incomer-DIN-SS,1400x600x250mm

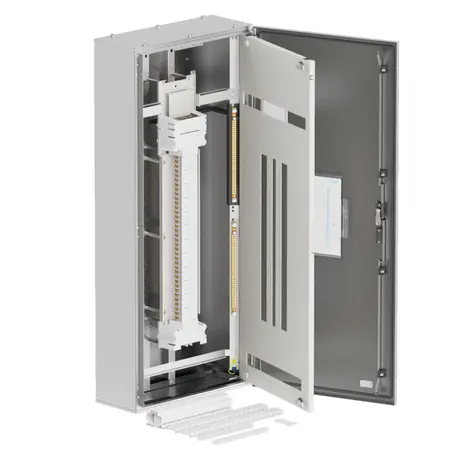

72 Pole Electrical Distribution Board | 250A Rated | IP66 Stainless Steel by Hager

BRAND: :hager

SKU: JPE7200NSSDS

$3,911.70 List price: $5,001.80

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Electrical distribution board with 72 accessible phases and 250A rated current—ideal for industrial facilities and data centers. Built for durability, with IP66 stainless steel construction for dust and water resistance.

Description
Attachments

Product Name/Title: DB, elite, 72Pole, No Incomer-DIN-SS,1400x600x250mm

Brand: Hager

SKU: JPE7200NSSDS

Alternatively Known As: Hager Electrical Distribution Board, Hager 72 Pole DB, Hager Panelboard

Technical Specifications

Rated current: 250 A
Number of accessible phases: 72
Number of modules: 40
Mounting: Surface mounting
Material: Stainless steel
Ingress Protection (IP) class: IP66
Impact resistance: IK05
Locking type: 3-point lever, Key lock
Dimensions (H x L x W): 1400mm x 250mm x 600mm
Weight: 50 kg

Key Features

72 accessible phases for extensive electrical distribution.
Rated current of 250 A for high-capacity applications.
IP66 ingress protection for dust and water resistance.
Constructed from durable stainless steel for longevity.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Commercial: Industrial facilities, data centers, and large buildings
General: Any location requiring a robust electrical distribution board

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Designed to reduce carbon footprint through sustainable materials and manufacturing processes.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager DB Elite 72 Pole No Incomer DIN Stainless Steel is available now for immediate purchase. Ideal for commercial and industrial applications.

JPE7200NSSDS (JPE7200NSSDS, 160 Kb) [Download]

reach_declaration_JPE7200NSSDS1.pdf (reach_declaration_JPE7200NSSDS1.pdf, 103 Kb) [Download]

(6LE009745B_Performa_Elite_EN_02-2024_Leaflet_web.pdf, 16,870 Kb) [Download]

(23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
