Home/Electrical/Switchboards/Distribution Boards/96 Pole Distribution Board | 160A MCCB | IP66 Stainless Steel | 1600x600x250mm by Hager

Trade Discount 22%

DB, elite, 96Pole, 160A MCCB-DIN-SS,1600x600x250mm

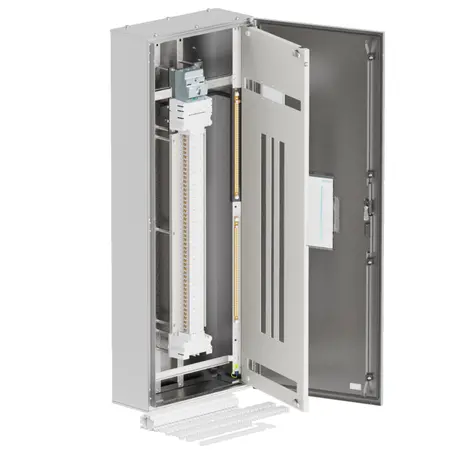

96 Pole Distribution Board | 160A MCCB | IP66 Stainless Steel | 1600x600x250mm by Hager

BRAND: :hager

SKU: JPE9600M16DS

$5,524.60 List price: $7,064.30

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

96 pole distribution board with 160A MCCB and IP66 rating—ideal for industrial facilities and large buildings. Built for robust electrical distribution, with durable stainless steel construction and surface mounting.

Description
Attachments

Product Name/Title: DB, elite, 96Pole, 160A MCCB-DIN-SS,1600x600x250mm

Brand: Hager

SKU: JPE9600M16DS

Alternatively Known As: Hager 160A MCCB, Hager Panelboard, Hager Electrical Enclosure

Technical Specifications

Number of accessible phases: 96
Mounting: Surface mounting
Equipment with lock: Yes
Number of modules: 40
Material: Stainless steel
Impact resistance: IK05
Ingress Protection (IP) class: IP66
Locking type: 3-point lever, Key lock
Dimensions (H x L x W): 1600mm x 250mm x 600mm
Weight: 50 kg

Key Features

Rated current of 160A for high-capacity electrical distribution.
IP66 rating for protection against dust and water ingress.
Constructed from durable stainless steel for longevity.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Commercial: Industrial facilities, large buildings, and infrastructure projects
General: Any application requiring robust electrical distribution and protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Designed to improve environmental performance by reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager DB Elite 96 Pole 160A MCCB-DIN-SS is available now for immediate purchase. Ideal for commercial and industrial applications requiring reliable electrical distribution.

JPE9600M16DS (JPE9600M16DS, 150 Kb) [Download]

reach_declaration_JPE9600M16DS1.pdf (reach_declaration_JPE9600M16DS1.pdf, 103 Kb) [Download]

(6LE009745B_Performa_Elite_EN_02-2024_Leaflet_web.pdf, 16,870 Kb) [Download]

(23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
