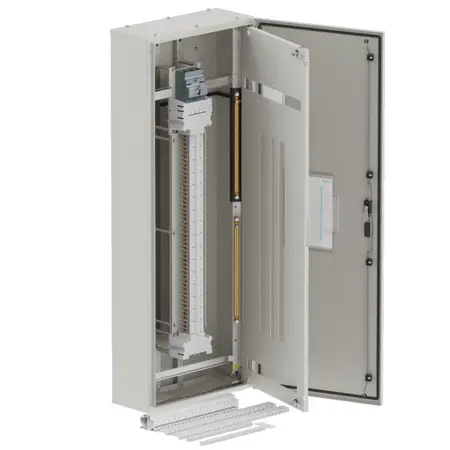

96 Pole Distribution Board | 160A MCCB Twin | IP66 Rated | Light Grey by Hager

BRAND: :hager
SKU: JPE9600M16DW
$4,292.20 List price: $5,348.70
Free pick up (over 25 kg and over 1 meter)
For delivery quote message
96 pole distribution board with 160A MCCB twin and IP66 rating—ideal for commercial and residential high-capacity electrical distribution. Built for extensive applications, with surface mounting and robust steel construction.

Product Name/Title: DB, elite, 96Pole, 160A MCCB Twin,8 Mod+26 Mod, grey,1600x600x250mm

Brand: Hager

SKU: JPE9600M16DW

Alternatively Known As: Hager 160A Panelboard, Hager MCCB Panel, Hager Electrical Distribution Board

Technical Specifications
  • Number of accessible phases: 96
  • Rated current: 160 A
  • Mounting: Surface mounting
  • Number of modules: 40
  • Material: Steel
  • RAL code: 7035
  • Colour: Light grey
  • Protection class: Isolation class I
  • Impact resistance: IK05
  • Ingress Protection (IP) class: IP66
  • Locking type: 3-point lever, Key lock
  • Dimensions (H x L x W): 1600mm x 250mm x 600mm
  • Weight: 50 kg
Key Features
  • 96 accessible phases for extensive electrical distribution.
  • Rated current of 160A for high-capacity applications.
  • IP66 ingress protection for dust and water resistance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Large buildings, industrial facilities
  • Residential: High-capacity homes requiring robust electrical distribution
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Designed to improve environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager DB Elite 96 Pole 160A MCCB Twin Panelboard is available now for immediate purchase. Ideal for commercial and residential applications requiring high-capacity electrical distribution.

Data Sheet (JPE9600M16DW, 149 Kb) [Download]

Certificate (reach_declaration_JPE9600M16DW1.pdf, 103 Kb) [Download]

Data Sheet (JPE9600M16DW1.webp, 373 Kb) [Download]

Certificate (6LE009745B_Performa_Elite_EN_02-2024_Leaflet_web.pdf, 16,870 Kb) [Download]

Certificate (23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
