Home/Electrical/Switchboards/Distribution Boards/96 Pole Distribution Board | 250A ISO-DIN | Stainless Steel | IP66 by Hager

Trade Discount 22%

DB, elite, 96Pole, 250A ISO-DIN-SS,1600x600x250mm

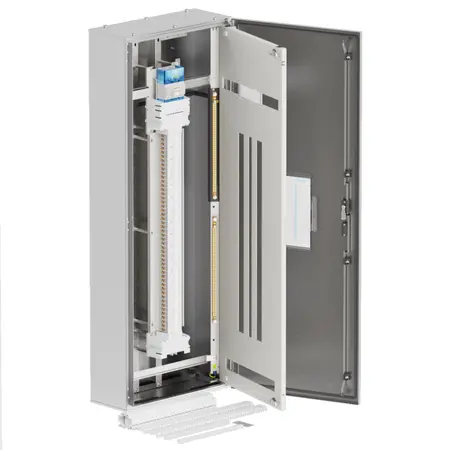

96 Pole Distribution Board | 250A ISO-DIN | Stainless Steel | IP66 by Hager

BRAND: :hager

SKU: JPE9600S25DS

$4,724.50 List price: $6,041.20

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

96 pole distribution board with 250A rated current and ISO-DIN compliance—ideal for industrial and commercial power distribution. Built for durability, with stainless steel construction and IP66 protection against dust and water.

Description
Attachments

Product Name/Title: DB, elite, 96Pole, 250A ISO-DIN-SS,1600x600x250mm

Brand: Hager

SKU: JPE9600S25DS

Alternatively Known As: Hager 250A Distribution Board, Hager Elite Panelboard, Hager Stainless Steel DB

Technical Specifications

Number of accessible phases: 96
Mounting: Surface mounting
Number of modules: 40
Isolation class: I
Impact resistance: IK05
Locking type: 3-point lever, Key lock
Dimensions (H x L x W): 1600mm x 250mm x 600mm
Weight: 50 kg

Key Features

Rated current of 250A for high-capacity applications.
Constructed from durable stainless steel for longevity.
IP66 rating for protection against dust and water ingress.
3-point lever locking mechanism for enhanced security.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in large facilities
Commercial: Electrical installations in commercial buildings
General: Suitable for any application requiring robust electrical enclosures

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Designed to improve environmental performance by reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager DB Elite 96 Pole 250A ISO-DIN-SS is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

JPE9600S25DS (JPE9600S25DS, 152 Kb) [Download]

reach_declaration_JPE9600S25DS1.pdf (reach_declaration_JPE9600S25DS1.pdf, 103 Kb) [Download]

(6LE009745B_Performa_Elite_EN_02-2024_Leaflet_web.pdf, 16,870 Kb) [Download]

(23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
