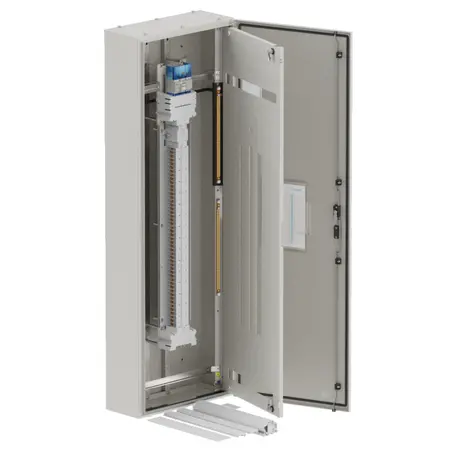

96 Pole Meter Panelboard | 250A Isolator | IP66 Rated | Grey by Hager

BRAND: :hager
SKU: JPE9600S25DW-M
$3,919.40 List price: $4,884.20
Free pick up (over 25 kg and over 1 meter)
For delivery quote message
96 pole meter panelboard with 250A isolator and IP66 rating—ideal for residential and commercial electrical distribution. Built for high-capacity applications, with robust steel construction and extensive phase accessibility.

Product Name/Title: DB, elite, 96Pole, Meter, 250A Isolator 2x8 Mod+26 Mod, grey,1600x600x250mm

Brand: Hager

SKU: JPE9600S25DW-M

Alternatively Known As: Hager 250A Isolator, Hager 96 Pole Meter, Hager Elite Panelboard

Technical Specifications
  • Rated current: 250A
  • Number of modules: 40
  • Material: Steel, RAL code 7035
  • Impact resistance: IK05
  • Isolation class: I
  • Locking type: 3-point lever, Key lock
  • Dimensions (H x L x W): 1800mm x 250mm x 600mm
  • Weight: 50 kg
Key Features
  • 96 accessible phases for extensive electrical distribution.
  • Rated current of 250A for high-capacity applications.
  • IP66 ingress protection for dust and water resistance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Designed to improve environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager DB Elite 96 Pole Meter 250A Isolator is available now for immediate purchase. Ideal for residential and commercial electrical distribution.

Data Sheet (JPE9600S25DW-M, 141 Kb) [Download]

Certificate (reach_declaration_JPE9600S25DW-M.pdf, 103 Kb) [Download]

Data Sheet (JPE9600S25DW-M.webp, 335 Kb) [Download]

Certificate (6LE009748B_Performa_Elite-Metering_EN_02-2024_Leaflet_web.pdf, 14,789 Kb) [Download]

Certificate (23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
