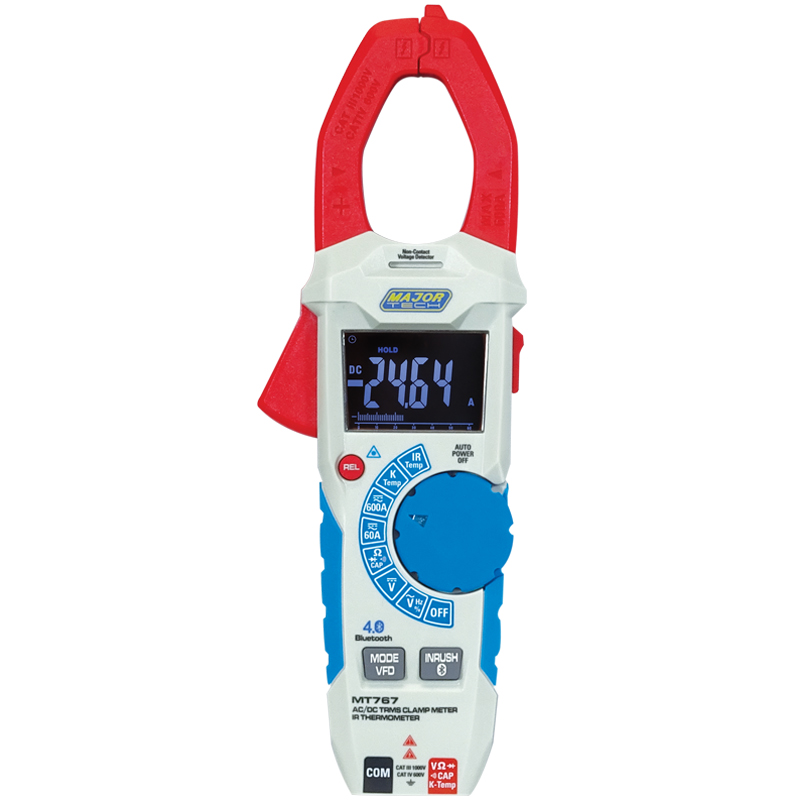

AC/DC Clamp Meter 600A with Infrared Thermometer & Bluetooth | CAT IV 600V | Majortech
The BT 600A AC/DC clamp meter features a 600A capacity, infrared thermometer, and Bluetooth connectivity—ideal for electricians and HVAC technicians. Built for accurate electrical measurements and diagnostics, it offers a rugged design and user-friendly operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AC/DC Clamp Meter 600A with Infrared Thermometer & Bluetooth | CAT IV 600V | Majortech
Brand: Majortech
SKU: MT767
Alternatively Known As: Digital Clamp Meter with IR Thermometer, Bluetooth Clamp Meter, AC/DC Clamp Meter, Infrared Thermometer Clamp Meter
Technical Specifications
- AC Current Range: 0.001A to 600A, Resolution: 10mA, Accuracy: ±(1.5% + 10 digits)
- DC Voltage Range: 1mV to 1000V, Resolution: 1mV, Accuracy: ±(0.8% + 4 digits)
- AC Voltage Range: 0.001V to 1000V, Resolution: 1mV, Accuracy: ±(1.5% + 5 digits)
- Resistance Range: 0.1Ω to 60MΩ, Resolution: 0.1Ω, Accuracy: ±(2.0% + 5 digits)
- Frequency Range: 0.001Hz to 9.999kHz, Resolution: 1mHz, Accuracy: ±(1.5% + 6 digits)
- Capacitance Range: 0.1nF to 99.99mF, Resolution: 0.1nF, Accuracy: ±(4% + 6 digits)
- Temperature K-Type Probe Range: -20°C to 1000°C, Resolution: 0.1°C, Accuracy: ±(3.0% + 3°C)
- IR Temperature Range: -30°C to 350°C, Spot Ratio 4:1, Resolution: 0.1°C, Accuracy: ±(2.0% + 2°C)
- Duty Cycle Range: 20% to 80%, Resolution: 0.1%, Accuracy: ±(1.2% + 5)
- Dimensions (H x L x W): 200mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- CAT IV 600V True RMS 600A AC/DC digital clamp meter
- Incorporates an Infrared Thermometer with 4:1 spot ratio
- Bluetooth connectivity for data transmission to Android/iOS apps
- Measures AC/DC voltage up to 1000V, frequency, capacitance, resistance
- K-Type thermometer input for temperature measurements up to 1000°C
- 100ms Inrush current detection for motor startup and surge currents
- VFD function for stable voltage measurement in high frequency applications
- Non-contact voltage detection and built-in flashlight
- Rugged double moulded rubber housing for durability
Professional Installation Requirements
- No professional installation required; however, users should have basic electrical knowledge to operate safely.
Applications
- Electricians for electrical current and voltage measurements
- Maintenance professionals for equipment diagnostics
- HVAC technicians for temperature and electrical system checks
- Mining industry for robust and accurate electrical measurements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Bluetooth data transmission reduces paper usage by enabling digital record keeping
- Energy-efficient design extends battery life reducing waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech BT 600A AC/DC Thermometer Clamp Meter MT767 is available now for immediate purchase. Ideal for electrical, maintenance, HVAC, and mining industry applications.
