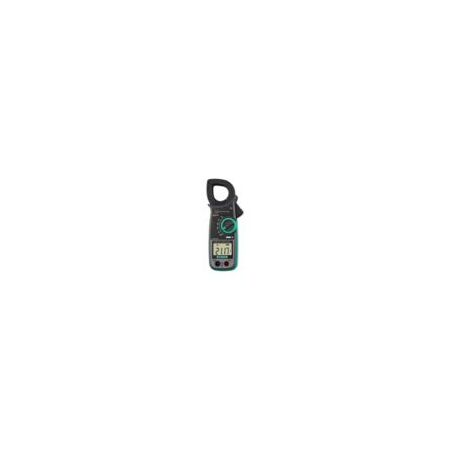

AC True RMS Clamp Meter | 1000A Max Current | LCD Display & CAT IV Safety | Kyoritsu 2117R by Eaton
The Kyoritsu 2117R AC True RMS clamp meter offers accurate measurements with a maximum current of 1000A and a clear LCD display. Ideal for professional electrical testing and maintenance, it features CAT IV 300V and CAT III 600V safety ratings, ensuring compliance and safety in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AC True RMS Clamp Meter | 1000A Max Current | LCD Display & CAT IV Safety | Kyoritsu 2117R by Eaton
Brand: Eaton
SKU: 02117R029C
Alternatively Known As: Digital Clamp Meter, True RMS Clamp Meter, AC Current Clamp Meter, Kyoritsu 2117R Multimeter
Technical Specifications
- Display Type: LCD
- Detection Method: True RMS
- AC Current Measurement Max: 1000 A
- AC Voltage Measurement Max: 600 V
- DC Voltage Measurement Max: 600 V
- Current Measurement Resolution: 0.01 A
- Safety Category Rating: CAT IV 300V, CAT III 600V
- Certifications: IEC 61010-1, IEC 60529, EN 50581, IEC 61010-2-033, IEC 61010-031, IEC 61010-2-032, IEC 61326-2-2
- Dimensions (H x L x W): 204mm x 81mm x 36mm
- Weight: 0.22 kg
Key Features
- True RMS measurement for accurate AC current readings
- Measures AC current up to 1000A
- CAT IV 300V and CAT III 600V safety ratings
- LCD display for clear readings
- Includes test leads, carry case, batteries, and instruction manual
Professional Installation Requirements
- Use by qualified electrical professionals is recommended to ensure safety and compliance with electrical standards.
Applications
- Electrical testing and measurement in industrial environments
- Maintenance and troubleshooting of electrical systems
- Professional use in CAT IV 300V and CAT III 600V rated environments
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Accurate measurements reduce the need for repeated testing, saving energy and resources
- Durable design extends product life, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's warranty policy for details.
Available Now
The Kyoritsu 2117R Clamp Meter AC TrueRMS is available for immediate purchase, ideal for professional electrical testing and maintenance applications.
