ACB Carriage 1250A 3P | Vertical & Horizontal Terminals | Safety Shutters by NHP
ACB carriage with 1250A rated current and 3 poles—ideal for industrial and commercial power distribution. Built for safety and flexibility, with vertical and horizontal terminal orientation and fitted safety shutters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

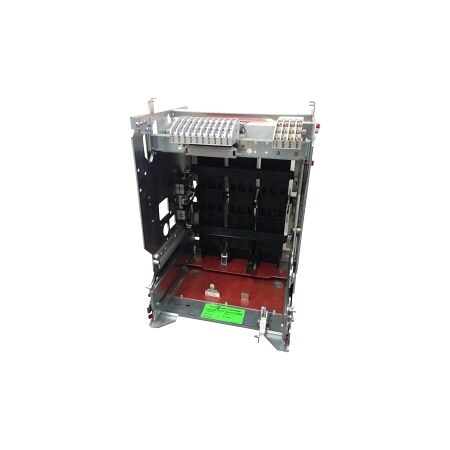

Product Name/Title: Terasaki TemPower 2 AR ACB Carriage AR2 1250A 3P Standard Vert. Horiz. Terminals
Brand: NHP
SKU: ARC2123VHSTD
Alternatively Known As: Terasaki ACB Carriage, AR2 ACB, 1250A Circuit Breaker
Technical Specifications
- Rated Current: 1250 A
- Nominal Voltage: 690 V
- Rated Insulation Voltage: 1000 V
- Rated Impulse Withstand Voltage: 12 kV
- Type of Electrical Connection: Bolt connection
- Number of Auxiliary Contacts: 7
- Orientation: Vertical/horizontal
- Safety Shutters Fitted: Yes
- Control Plug Shutter Fitted: Yes
- Control Terminal Cover Supplied: Yes
- Auto Trip Discharge Lever Fitted: Yes
- Dimensions (H x L x W): 460mm x 385mm x 354mm
- Weight: 28 kg
Key Features
- Rated current of 1250 A with 3 poles.
- Vertical and horizontal terminal orientation.
- Safety shutters and control plug shutter fitted.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings and infrastructure
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for efficient power management and safety.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemPower 2 AR ACB Carriage AR2 1250A 3P is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
