ACB Carriage 1250A 3P | Vertical Terminals | Safety Shutters by NHP
ACB carriage with 1250A rated current and 3 poles—ideal for industrial and commercial power distribution. Built for reliability, with vertical orientation, safety shutters, and control terminal cover.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

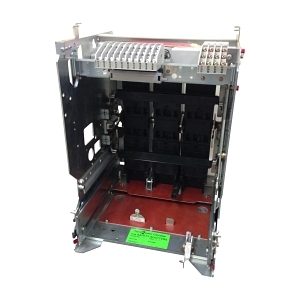

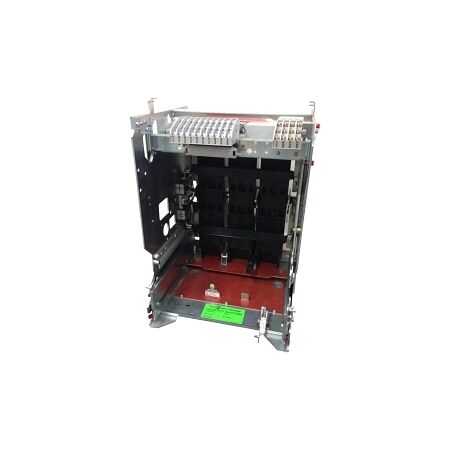

Product Name/Title: Terasaki TemPower 2 AR ACB Carriage AR2 1250A 3P Standard Vert. Terminals
Brand: NHP
SKU: ARC2123VVSTD
Alternatively Known As: Terasaki ACB, AR2 ACB Carriage, 1250A Circuit Breaker
Technical Specifications
- Rated Current: 1250 A
- Number of Poles: 3
- Nominal Voltage: 690 V
- Rated Insulation Voltage: 1000 V
- Rated Impulse Withstand Voltage: 12 kV
- Type of Electrical Connection: Bolt connection
- Number of Auxiliary Contacts: 7
- Orientation: Vertical
- Safety Shutters: Yes
- Control Plug Shutter: Yes
- Control Terminal Cover: Yes
- Auto Trip Discharge Lever: Yes
- Dimensions (H x L x W): 460mm x 385mm x 354mm
- Weight: 28 kg
Key Features
- Rated current of 1250 A with 3 poles for reliable performance.
- Vertical orientation with safety shutters and control terminal cover.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Efficient design reduces energy loss and enhances system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemPower 2 AR ACB Carriage AR2 1250A 3P is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
