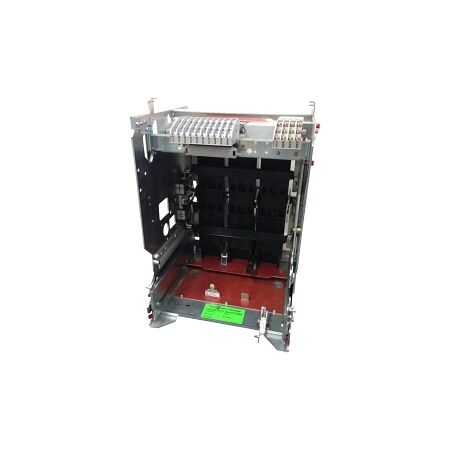

Terasaki TemPower 2 AR ACB Carriage AR2 2000A 3P Standard Front Connect Terminals

ACB Carriage 2000A 3P | Front Connect Terminals | Safety Shutters by NHP

BRAND: NHP

SKU: ARC2203FFSTD

$9,784.80 List price: $12,992.90

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

ACB carriage with 2000A rated current and 3 poles—ideal for industrial and commercial power distribution. Built for easy installation with front connect terminals and enhanced safety features like safety shutters.

Description
Attachments

Product Name/Title: Terasaki TemPower 2 AR ACB Carriage AR2 2000A 3P Standard Front Connect Terminals

Brand: NHP

SKU: ARC2203FFSTD

Alternatively Known As: Terasaki ACB, AR ACB Carriage, Circuit Breaker Carriage

Technical Specifications

Rated Current: 2000 A
Number of Poles: 3
Nominal Voltage: 690 V
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 12 kV
Electrical Connection: Bolt connection
Number of Auxiliary Contacts: 7
Safety Shutters: Yes
Control Plug Shutter: Yes
Control Terminal Cover: Yes
Auto Trip Discharge Lever: Yes
Dimensions (H x L x W): 580mm x 380mm x 354mm
Weight: 33 kg

Key Features

Rated current of 2000 A with 3 poles for reliable circuit protection.
Front connection orientation for easy installation.
Safety shutters and control terminal cover for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Large buildings requiring robust circuit protection

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for energy efficiency and reduced environmental impact.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Terasaki TemPower 2 AR ACB Carriage AR2 2000A 3P is available now for immediate purchase. Ideal for industrial and commercial power distribution.

ARC2203FFSTD-AU-AR-ACB-Carriage-Datasheet.pdf (ARC2203FFSTD-AU-AR-ACB-Carriage-Datasheet.pdf, 291 Kb) [Download]
