Acti9 Distribution Chassis 250A | 3Ph 48 Poles | 18mm MCB/RCBO | Clipsal
Acti9 distribution chassis with 250A capacity and 3-phase 48 poles—ideal for industrial and commercial power distribution. Built for compatibility with 18mm MCB and RCBO, offering top or bottom connection options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

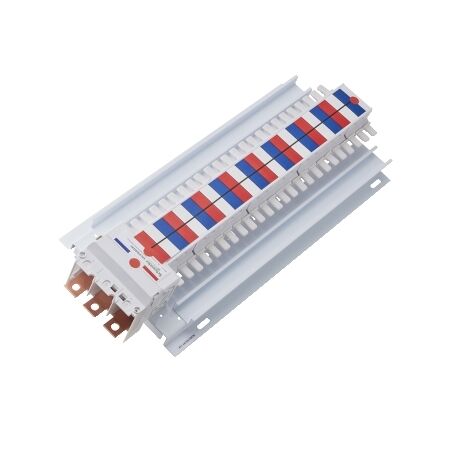

Product Name/Title: Acti9, SAU Chassis, 250A, 3Ph, 48 poles, 18mm for iC60 MCB and RCBO, top or bottom
Brand: Clipsal
SKU: SAU25048183
Alternatively Known As: Acti9 Distribution Chassis, 250A Chassis, 3 Phase Distribution Board
Technical Specifications
- Rated current: 250A
- Rated voltage: 415V 50Hz
- Number of poles: 48
- Short-circuit withstand: 25kA for 0.1s
- Rated insulation voltage: 500V
- Rated impulse withstand voltage: 6kV
- Busbar pitch: 18mm
- Dimensions (H x L x W): 244mm x 434mm x 215mm
- Weight: 3.7 kg
Key Features
- Designed for Acti9 distribution boards with a rated current of 250A.
- Compatible with 48 x 18mm MCB and RCBO.
- Connection options available at the top or bottom.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in electrical installations requiring high current capacity
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Packaging made with recycled materials, contributing to sustainability efforts.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Acti9 SAU Chassis 250A 3Ph 48 Poles is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
