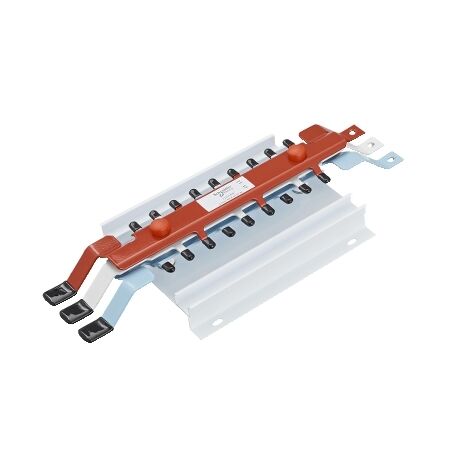

Acti9 MSC Chassis 3PH 400A | 36 Poles | Dual Feed | 27mm by Clipsal
Acti9 MSC chassis with 400A rating and 36 poles—ideal for commercial and industrial distribution boards. Built for compatibility with Acti9 Isobar B, featuring dual feed and 27mm busbar pitch for efficient electrical distribution.
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MSC Chassis 3PH, 400A, 27mm for C120 MCB 36 poles, Dual Feed
Brand: Clipsal
SKU: C1253634
Alternatively Known As: Acti9 Chassis, MSC 27 Chassis, 400A Distribution Chassis
- Rated current: 400A
- Number of poles: 36 x 27mm
- Rated short-time withstand current: 25kA
- Busbar pitch: 27mm
- Unit type of package: PCE
- Number of units in package: 1
- Dimensions (H x L x W): 100mm x 488mm x 488mm
- Weight: 1 kg
- Designed for Acti9 Isobar B distribution board compatibility.
- Rated current of 400A with 36 poles.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Commercial: Industrial distribution boards
- General: Electrical distribution in various settings
- Complies with AS/NZS 3000 for electrical installation standards.
- Contributes to energy efficiency in electrical distribution.
1 year warranty against manufacturing defects.
The Clipsal Acti9 MSC Chassis 3PH 400A is available now for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
