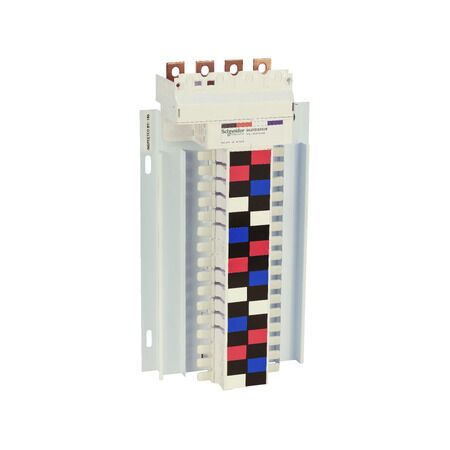

Acti9 SAU Chassis 250A | 32 Poles | 18mm Busbar Pitch by Clipsal

BRAND: Clipsal
SKU: SAU2503241N
$1,042.50 List price: $1,563.70
+
Acti9 SAU chassis with 250A rated current and 32 poles—ideal for commercial and industrial power distribution. Built for robust performance, compatible with Acti9 distribution boards, and features an 18mm busbar pitch.

Product Name/Title: Acti9, SAU Chassis, 250A, 3*(1Ph+N), 32 poles, 18mm for iC60 MCB and RCBO, top feed

Brand: Clipsal

SKU: SAU2503241N

Alternatively Known As: Acti9 Distribution Chassis, 250A Circuit Protection Chassis

Technical Specifications
  • Rated current: 250A
  • Rated voltage: 415V 50Hz
  • Number of poles: 32
  • Short-circuit withstand: 25kA for 0.1s
  • Rated insulation voltage: 500V
  • Rated impulse withstand voltage: 6kV
  • Location of connection: top or bottom
  • Dimensions (H x L x W): 95mm x 290mm x 215mm
  • Weight: 2.9 kg
Key Features
  • 250A rated current for robust power distribution.
  • Compatible with Acti9 distribution boards.
  • 32 poles with 18mm busbar pitch.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Distribution boards for electrical installations
  • Industrial: Power distribution in factories and large facilities
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Designed to minimize energy loss and improve efficiency in electrical systems.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Acti9 SAU Chassis 250A is available now for immediate purchase. Ideal for commercial and industrial power distribution applications.

SAU2503241N (SAU2503241N, 201 Kb) [Download]
