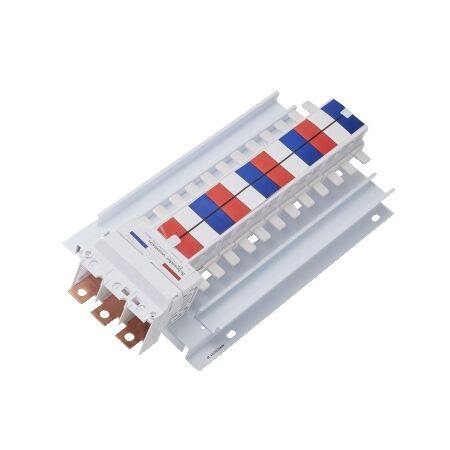

Acti9 SAU Chassis 250A 3Ph | 24 Poles | Top/Bottom Connection by Clipsal
Acti9 SAU chassis with 250A current and 24 poles—ideal for industrial and residential power distribution. Built for versatility, with top or bottom connection options and compliance with AS/NZS 61439 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, SAU Chassis, 250A, 3Ph, 24 poles, 27mm for C120 MCB, top or bottom
Brand: Clipsal
SKU: SAU25024273
Alternatively Known As: Acti9 Distribution Chassis, 250A Chassis, Clipsal Acti9 Board
Technical Specifications
- Rated current: 250A
- Rated voltage: 415V 50Hz
- Number of poles: 24
- Short-circuit withstand: 25kA for 0.1s
- Rated insulation voltage: 500V
- Rated impulse withstand voltage: 6kV
- Busbar pitch: 27mm
- Network type: AC
- Dimensions (H x L x W): 95mm x 326mm x 215mm
- Weight: 2.9 kg
Key Features
- Designed for Acti9 distribution boards with a rated current of 250A.
- Compatible with top or bottom connection options.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Large homes requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Designed to minimize energy loss and improve efficiency in electrical distribution.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Acti9 SAU Chassis 250A 3Ph 24 Poles is available now for immediate purchase. Ideal for industrial and residential power distribution needs.
