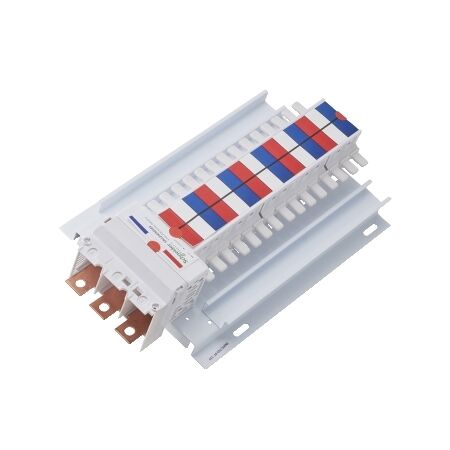

Acti9 SAU Chassis 250A 3Ph | 30 Poles | iC60 MCB Compatible | Clipsal
Acti9 chassis with 250A capacity and 3-phase support, featuring 30 poles and compatibility with iC60 MCB and RCBO. Ideal for industrial and residential power distribution, offering top or bottom connection options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, SAU Chassis, 250A, 3Ph, 30 poles, 18mm for iC60 MCB and RCBO, top or bottom
Brand: Clipsal
SKU: SAU25030183
Alternatively Known As: Acti9 Distribution Chassis, 250A Circuit Breaker Chassis
Technical Specifications
- Rated current: 250A
- Rated voltage: 415V 50Hz
- Number of poles: 30 x 18mm
- Short-circuit withstand: 25kA for 0.1s
- Rated insulation voltage: 500V
- Rated impulse withstand voltage: 6kV
- Busbar pitch: 18mm
- Dimensions (H x L x W): 96mm x 272mm x 215mm
- Weight: 2.464 kg
Key Features
- Designed for Acti9 distribution boards with a rated current of 250A.
- Compatible with iC60 MCB and RCBO.
- Top or bottom connection options available.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Large homes requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Designed to minimize environmental impact with recyclable packaging.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Acti9 SAU Chassis 250A 3Ph 30 Poles is available now for immediate purchase. Ideal for industrial and residential power distribution applications.
