Acti9 SAU Chassis 250A | 3Ph 48 Poles | Dual Feed by Clipsal
Acti9 SAU chassis with 250A rated current and dual feed—ideal for industrial and commercial power distribution. Built for robust performance, compatible with Acti9 distribution boards.
Sign in
Please login to continue to your account.

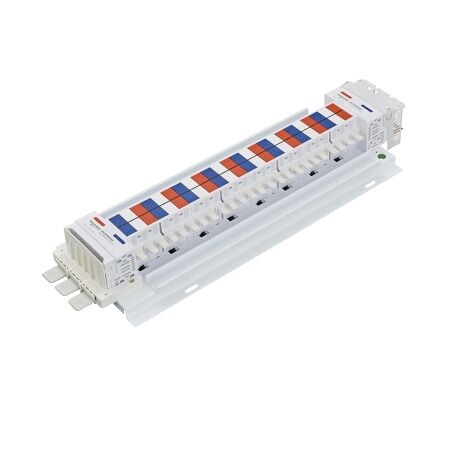

Product Name/Title: Acti9, SAU Chassis, 250A, 3Ph, 48 poles, 18mm for iC60 MCB and RCBO, dual feed
Brand: Clipsal
SKU: SAU25048183DF
Alternatively Known As: Acti9 Distribution Chassis, 250A Chassis, Clipsal Circuit Protection
- Rated current: 250A
- Rated voltage: 415V 50Hz
- Number of poles: 48 x 18mm
- Short-circuit withstand: 25kA for 0.1s
- Rated insulation voltage: 500V
- Rated impulse withstand voltage: 6kV
- Busbar pitch: 18mm
- Network type: AC
- Number of ways: 1 way (incomer)
- Dimensions (H x L x W): 95mm x 434mm x 215mm
- Weight: 4.0 kg
- 250A rated current for robust power distribution.
- Compatible with Acti 9 distribution boards.
- Dual feed connection for enhanced flexibility.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in electrical installations requiring high capacity
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
- Designed to minimize energy loss and improve efficiency in power distribution.
1 year warranty against manufacturing defects.
The Clipsal Acti9 SAU Chassis 250A is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
