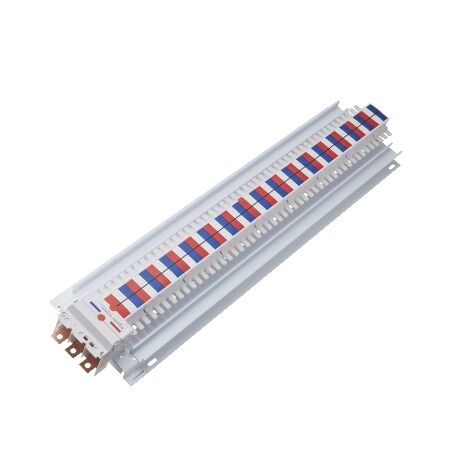

Acti9 SAU Chassis 250A 3Ph | 96 Poles | 18mm Busbar | Clipsal
Acti9 SAU chassis with 250A capacity and 96 poles—ideal for industrial power distribution. Built for compatibility with iC60 MCB and RCBO, featuring 18mm busbar pitch and top or bottom connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, SAU Chassis, 250A, 3Ph, 96 poles, 18mm for iC60 MCB and RCBO, top or bottom
Brand: Clipsal
SKU: SAU25096183
Alternatively Known As: Acti9 Distribution Chassis, 250A Circuit Breaker Chassis
Technical Specifications
- Rated current: 250A
- Rated voltage: 415V 50Hz
- Number of poles: 96
- Short-circuit withstand: 25kA for 0.1s
- Rated insulation voltage: 500V
- Rated impulse withstand voltage: 6kV
- Busbar pitch: 18mm
- Number of ways: 1 way (incomer) - 3P
- Dimensions (H x L x W): 95mm x 866mm x 215mm
- Weight: 6.7 kg
Key Features
- Designed for Acti9 distribution boards with a rated current of 250A.
- Compatible with iC60 MCB and RCBO.
- 96 poles with 18mm busbar pitch.
- Connection options available at top or bottom.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in electrical installations requiring high capacity
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Packaging made with recycled materials, contributing to sustainability efforts.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Acti9 SAU Chassis 250A 3Ph 96 Poles is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
