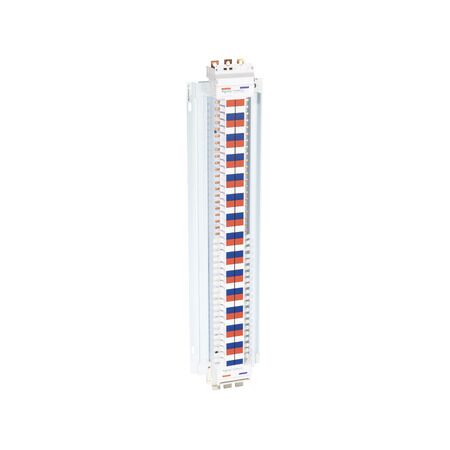

Acti9 SAU Chassis 250A | 84 Poles | Dual Feed | 18mm Pitch by Clipsal
Acti9 SAU chassis with 250A rated current and 84 poles—ideal for commercial and industrial electrical distribution. Built for robust power management, with dual feed capability and flexible 18mm busbar configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, SAU Chassis, 250A, 3Ph, 84 poles, 18mm for iC60 MCB and RCBO, dual feed
Brand: Clipsal
SKU: SAU25084183DF
Alternatively Known As: Acti9 Distribution Board, 250A Chassis, Clipsal Circuit Protection
Technical Specifications
- Rated current: 250A
- Rated voltage: 415V 50Hz
- Number of poles: 84
- Short-circuit withstand: 25kA for 0.1s
- Rated insulation voltage: 500V
- Rated impulse withstand voltage: 6kV
- Network type: AC
- Number of ways: 1 way (incomer)
- Dimensions (H x L x W): 95mm x 758mm x 215mm
- Weight: 6.5 kg
Key Features
- 250A rated current for robust electrical distribution.
- 84 poles with 18mm busbar pitch for flexible configuration.
- Dual feed capability for enhanced power management.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Large buildings, industrial facilities
- General: Electrical distribution in various applications
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Designed to minimize energy loss and improve efficiency in electrical distribution.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Acti9 SAU Chassis 250A is available now for immediate purchase. Ideal for commercial and industrial electrical distribution needs.
