Miniature General Purpose Relay | 10 Amp Current Rating | 24 VAC Coil Voltage | 2 Pole Configuration | by Allen-Bradley
The Miniature General Purpose Relay is designed for reliable electrical switching in industrial control systems and automation equipment. With a 10 amp current rating and 24 VAC coil voltage, this open-style mountable relay features a square base and blade-style terminals, making it ideal for various applications. Its on/off indicator ensures operational status is easily visible, providing peace of mind for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

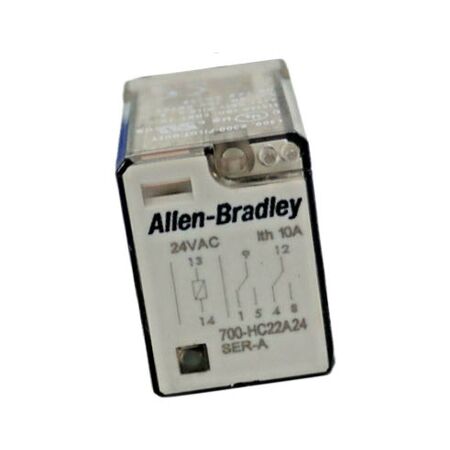

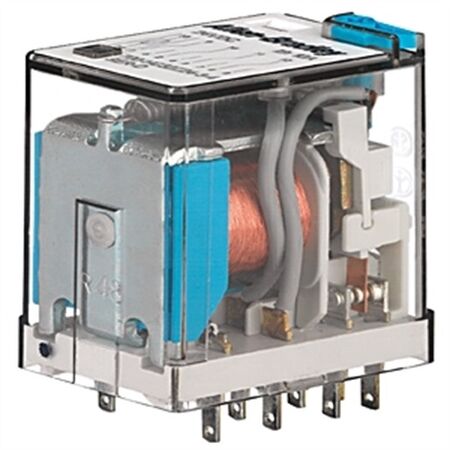

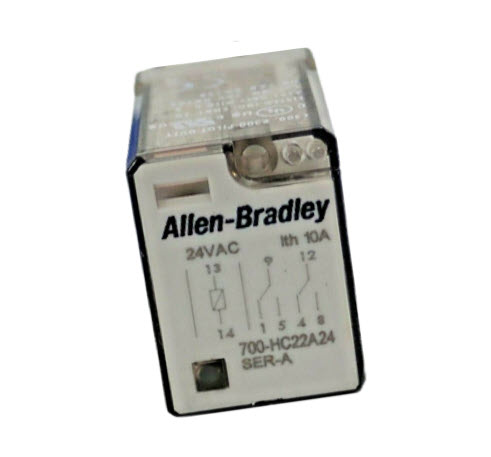

Product Name/Title: Allen-Bradley 700HC22A24 Miniature General Purpose Relay
Brand: Allen-Bradley
SKU: 700HC22A24
Alternatively Known As: Miniature Ice Cube Relay, General Purpose Relay, 2 Pole Relay, 24VAC Relay
Technical Specifications
- Relay Type: Miniature (Ice Cube)
- Base Type: Square
- Terminals: Blade-style
- Indicator: On/Off
- Poles: 2
- Current Rating: 10 Amp
- Coil Voltage: 24 VAC
- Frequency: 50/60 Hz
- Style: Open, mountable
- Dimensions (H x L x W): 50mm x 45mm x 35mm
- Weight: 0.1 kg
Key Features
- Miniature ice cube relay design
- Square base with blade-style terminals
- On/off indicator for operational status
- 2 pole configuration
- 10 amp current rating
- 24 VAC coil voltage
- 50/60 Hz frequency
- Open style mountable relay
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy efficient coil operation minimizes power consumption
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 700HC22A24 Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
