Miniature General Purpose Relay | 2-Pole Design | 10 Amp Current Rating | 24 VDC Coil Voltage | by Allen-Bradley
The Miniature General Purpose Relay is designed for reliable performance in industrial control systems and automation equipment. Featuring a compact ice cube design, 2-pole configuration, and a 10 amp current rating, this relay ensures efficient electrical switching. Ideal for qualified electricians, it includes an on/off indicator for operational status, making it perfect for various general electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

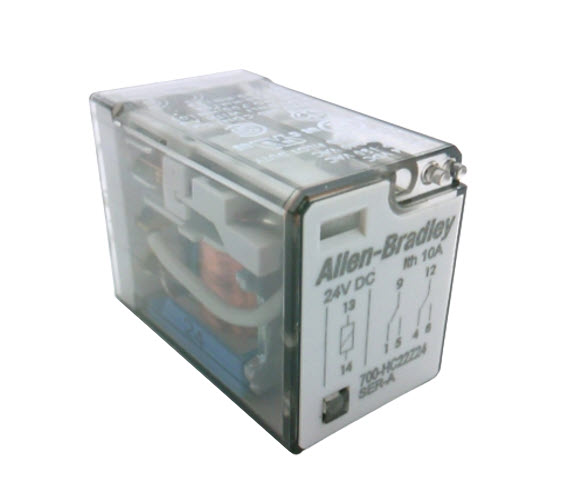

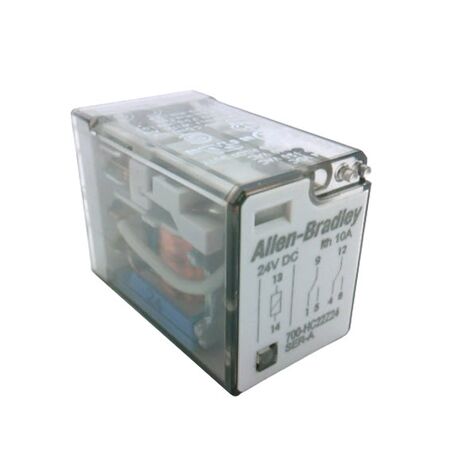

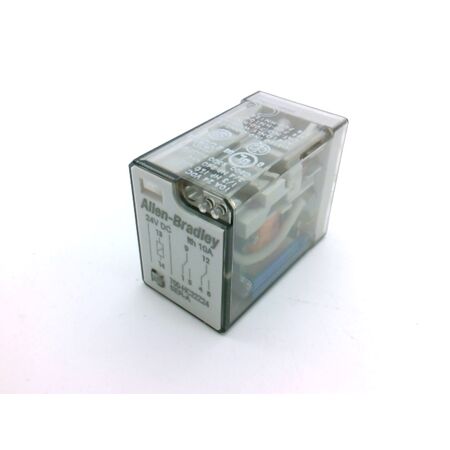

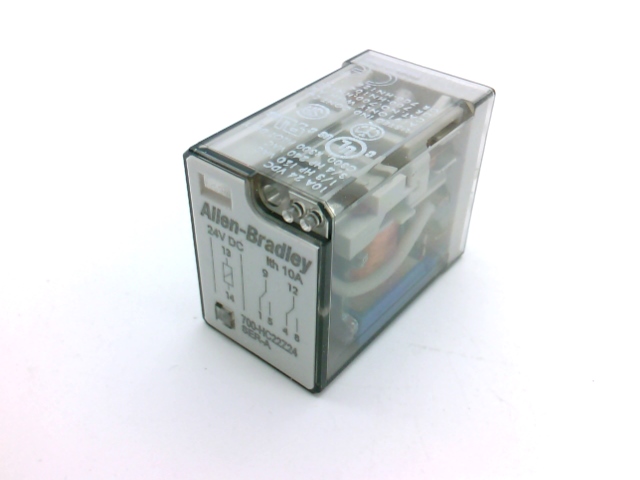

Product Name/Title: Allen-Bradley 700HC22Z24 Miniature General Purpose Relay
Brand: Allen-Bradley
SKU: 700HC22Z24
Alternatively Known As: Miniature Ice Cube Relay, General Purpose Relay, 2-Pole Relay, 24VDC Relay
Technical Specifications
- Type: Miniature ice cube relay
- Base: Square
- Terminals: Blade-style
- Poles: 2
- Current Rating: 10 Amp
- Coil Voltage: 24 VDC
- Indicator: On/Off status
- Dimensions (H x L x W): 35mm x 28mm x 28mm
- Weight: 0.1 kg
Key Features
- Miniature ice cube relay design
- Square base with blade-style terminals
- On/off indicator for operational status
- 2-pole configuration
- 10 amp current rating
- 24 VDC coil voltage
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage
- Durable construction extends product lifespan, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HC22Z24 Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
