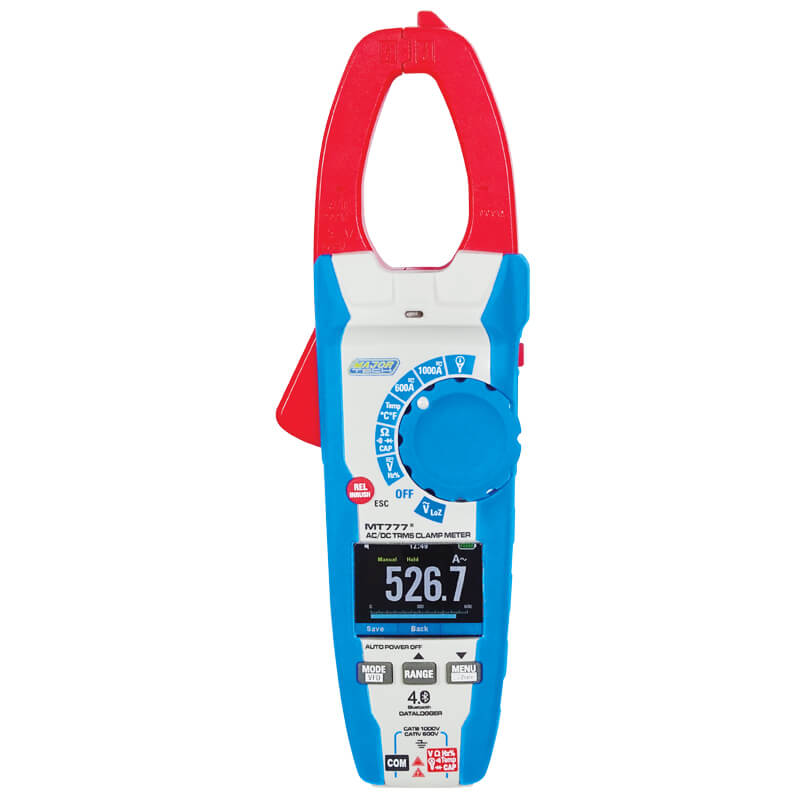

Bluetooth Clamp Meter 1000A AC/DC TRMS | 6000 Count | CAT IV 600V Safety | Majortech
The Bluetooth Clamp Meter offers a 1000A AC/DC TRMS range and 6000 count display—ideal for industrial and solar electrical measurements. Built for professionals, it features Bluetooth connectivity for easy data transmission and a durable design for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bluetooth Clamp Meter 1000A AC/DC TRMS | 6000 Count | CAT IV 600V Safety | Majortech
Brand: Majortech
SKU: MT777
Alternatively Known As: Bluetooth Clamp Meter, True RMS Clamp Meter, Digital Clamp Meter, AC/DC Clamp Meter, Solar Clamp Meter
Technical Specifications
- AC Current Range: 0.1A to 1000A, Resolution: 0.1A, Accuracy: ±(2.5% + 5 digits)
- DC Voltage Range: 0.1mV to 1000V, Resolution: 0.1mV, Accuracy: ±(1.5% + 5 digits)
- AC Voltage Range: 1mV to 1000V, Resolution: 1mV, Accuracy: ±(1.5% + 5 digits)
- Resistance Range: 0.1Ω to 60MΩ, Resolution: 0.1Ω, Accuracy: ±(1.5% + 5 digits)
- Frequency Range: 0.01Hz to 99.99kHz, Resolution: 0.01Hz, Accuracy: ±(1.2% + 5 digits)
- Capacitance Range: 0.01nF to 100mF, Resolution: 0.01nF, Accuracy: ±(3.0% + 8 digits)
- Temperature Range: -40°C to 1000°C, Resolution: 0.1°C, Accuracy: ±(1.5% + 5°C digits)
- Duty Cycle Range: 10% to 90%, Resolution: 0.001, Accuracy: ±(1.2% + 8 digits)
- Dimensions (H x L x W): 180mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- CAT IV 600V safety rating
- 6000 count True RMS measurement
- 1000A AC/DC current range with optional extension to 3000A using MT740 adaptor
- Bluetooth connectivity for wireless data transmission to Android and iOS apps
- Built-in data logger with 100 graph data review
- TFT colour display with analogue bargraph indication
- VFD function for stable voltage measurement in high frequency applications
- Low Z range with low pass filter to eliminate ghost voltages
- Measures AC/DC voltage, current, resistance, frequency, capacitance, temperature, duty cycle
- 100ms inrush current and peak hold functions
- Non-contact voltage detection
- Data hold function and built-in flashlight
- Double moulded rubber housing for durability
Professional Installation Requirements
- Professional installation is not required; however, use by qualified personnel is recommended for safety and accurate measurements.
Applications
- Industrial electrical measurements
- Solar power system diagnostics and maintenance
- High accuracy AC/DC current and voltage measurement
- Temperature and frequency monitoring in electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Wireless data transmission reduces paper usage by enabling digital record keeping.
- Energy efficient design minimizes power consumption during operation.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech 1000A AC/DC TRMS Bluetooth Clamp Meter MT777 is available now for immediate purchase. Ideal for industrial and solar electrical measurement applications.
