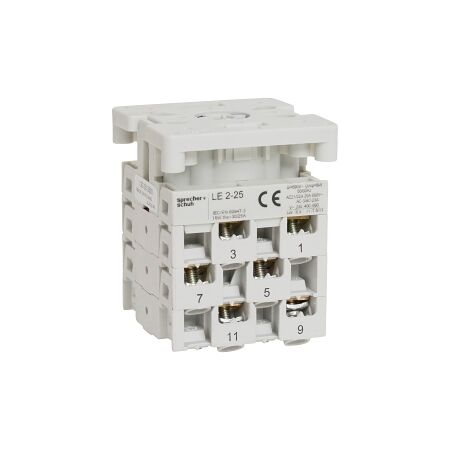

Cam Switch 3 Pole Changeover Off 25A Panel Mount IP20 NHP

BRAND: Sprecher + Schuh
SKU: LE2253503
$350.00 List price: $436.20
+ −
30 Days Return Electricians Unlock Trade Access
Cam switch with 3 pole changeover and off position, rated for 25A operation—ideal for industrial machinery control and commercial power distribution.
Technical Specifications
  • Number of Poles: 3
  • Rated Operation Power at AC 3 400 V: 11 kW
  • Rated Operation Current at AC 15 230 V: 8 A
  • Rated Operation Current at AC 15 400 V: 6 A
  • Rated Operation Current at AC 22A 690 V: 25 A
  • Rated Operation Current at AC 22A 220-500 V: 25 A
  • Rated Operation Current at AC 21A 690 V: 25 A
  • Rated Operation Current at AC 1 690 V: 25 A
  • Thermal Current Enclosed: 25 A
  • Thermal Current Open: 30 A
  • Type of Electrical Connection: Screw connection
  • Mounting Method: Front mounting
  • Material Housing: Plastic
  • Wire Conductor Size Rigid Cable: 1.5-6 mm²
  • Wire Conductor Size Flex Cable: 1.5-4 mm²
  • Degree of Protection: IP20
  • Mechanical Life Service Cycles: 1,000,000 cycles
  • Number of Switch Positions: 3
  • Operating Temperature: -25 to 60 °C
  • Dimensions (H x L x W): 55mm x 69.5mm x 55mm
  • Weight: 1.0 kg
Key Features
  • 3 pole changeover design with off position.
  • Rated for 25A operation, suitable for various voltage levels.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and automation
  • Commercial: Power distribution and switching applications
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Changeover with Off 25A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

LE2253503-AU-Cam-Switch-Body-Datasheet.pdf (LE2253503-AU-Cam-Switch-Body-Datasheet.pdf, 302 Kb) [Download]
