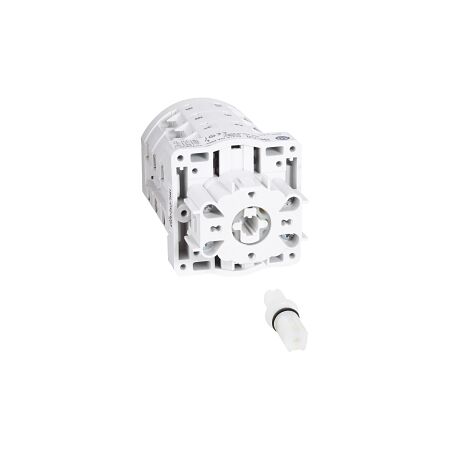

Cam Switch 6 Pole 25A | Panel Mount | 90° Off-On by NHP
Cam switch with 6 poles and 25A rating—ideal for industrial control panels and commercial electrical installations. Built for reliability, with front mounting design for easy installation.
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 194L Cam Switch 6Pole 25A Panel Mount 90 Degree Off On
Brand: NHP
SKU: 194LE251756
Alternatively Known As: Cam Switch, 6 Pole Switch, Panel Mount Switch
- Rated permanent current: 25 A
- Rated operation power at AC 3, 400 V: 11 kW
- Rated operation current at AC 15, 230 V: 8 A
- Rated operation current at AC 15, 400 V: 6 A
- Rated operation current at AC 22A 690 V: 25 A
- Rated operation current at AC 22A 220-500 V: 25 A
- Rated operation current at AC 21A 690 V: 25 A
- Rated operation current at AC 1 690 V: 25 A
- Thermal current enclosed: 25 A
- Thermal current open: 30 A
- Type of electrical connection: Screw connection
- Material housing: Plastic
- Wire conductor size (rigid cable): 1.5-6 mm²
- Wire conductor size (flex cable): 1.5-4 mm²
- Degree of protection: IP20
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 55mm x 69.5mm x 55mm
- Weight: 0.5 kg
- 6 poles for versatile switching options.
- Rated for 25A with a mechanical life of 1,000,000 cycles.
- Front mounting design for easy installation.
- Professional installation is recommended for optimal performance and safety.
- Industrial: Control panels, machinery, and equipment
- Commercial: Electrical installations requiring reliable switching
- Complies with AS/NZS 3000 for electrical installation safety.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Allen-Bradley 194L Cam Switch is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
