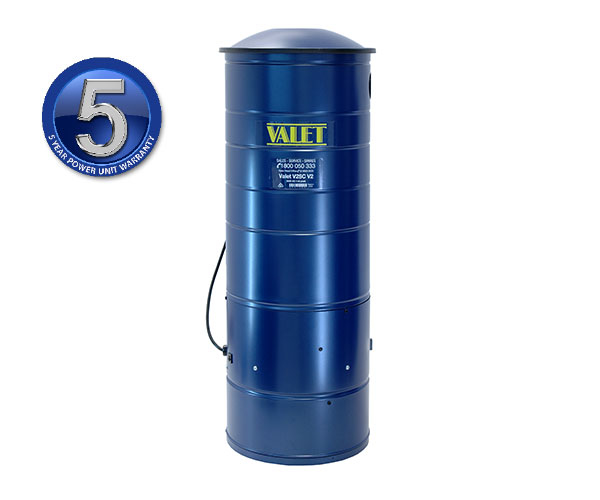

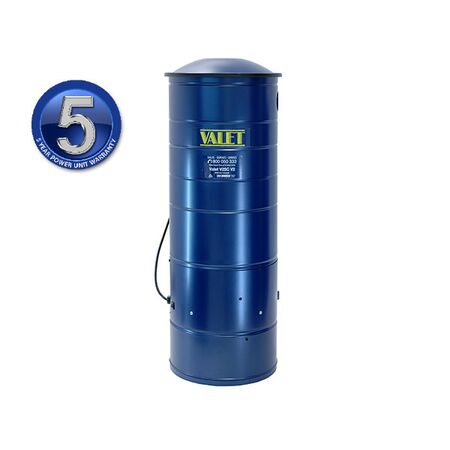

Central Vacuum Power Unit 1500hr Motor Soft-Start Valet

BRAND: Ness
SKU: VAC-129
$1,715.30 List price: $2,287.10
+ −
30 Days Return Electricians Unlock Trade Access
Valet central vacuum power unit features a 1500hr motor, soft-start technology and LED indicators. Ideal for central vacuum installs.

Alternatively Known As: Valet V2SC Central Vacuum Unit, Valet Ducted Vacuum Power Unit, Valet VAC-129

Technical Specifications
  • Model: V2SC.3
  • Product Code: VAC-129
  • Motor: Ametek 122386
  • Motor Life: 1500 hours
  • Peak Current: 7.4 A
  • Filtration: Max-Flo HEPA bag
  • Flow Type: 6.6 inch bypass
  • Vacuum: 3401 mm water lift
  • Air Watts: 602–573
  • Airflow: 139.9 CFM
  • Noise Level: 76 dB
  • Maximum Recommended Pipe Distance: 75 m
  • Control Board: Integrated Valet control board
  • Mains Connection: Universal plug-in mains lead
  • Included: Muffler, 90-degree sweep elbow, vacuum bag, bag adaptor, mounting bracket, bottom baffle, manual and fittings kit
  • Dimensions (H x L x W): 880mm x 310mm x 310mm
  • Weight: 12 kg
Key Features
  • 1500-hour long-life motor for residential ducted vacuum systems
  • Soft-start control reduces motor start-up stress and supports longer motor life
  • LED status indicators provide operating and fault information
  • Low standby current supports reduced energy consumption
  • Full-height body allows greater vacuum bag expansion
  • Max-Flo HEPA bag filtration helps contain fine household dust and allergens
  • Suitable for central vacuum installations with pipe runs up to 75 metres
  • Externally accessible fuse for easier servicing
  • Designed for installation in a sheltered garage, carport or covered location
Professional Installation Requirements
  • Installation should be performed by a suitably qualified installer. The unit requires connection to central vacuum ducting, low-voltage switching and mains power, and should be installed in a sheltered location in accordance with the manufacturer's instructions and applicable electrical requirements.
Applications
  • Residential central vacuum systems
  • Ducted vacuum installations in houses and apartments
  • Home renovations and retrofit central vacuum systems
  • Small offices and similar light-duty premises
Standards & Compliance
  • AS/NZS 60335.2.2:2020 for safety requirements applying to vacuum cleaners and centrally sited vacuum cleaners
  • Electrical installation and connection requirements should be assessed against applicable Australian state or territory regulations
Environmental Benefits
  • Soft-start operation reduces motor stress and may extend service life, helping reduce replacement waste
  • Low standby current supports improved energy efficiency when the system is not operating
  • Long-life motor reduces the frequency of motor replacement
  • HEPA bag filtration helps capture fine dust and allergens and exhausts air away from the main living area
Warranty Information

Five-year parts warranty for Valet central vacuum power units, with one additional year available when the warranty is registered or the warranty card is returned. Terms and conditions apply.

Available Now

Available through Valet and authorised Australian distributors and dealers.
