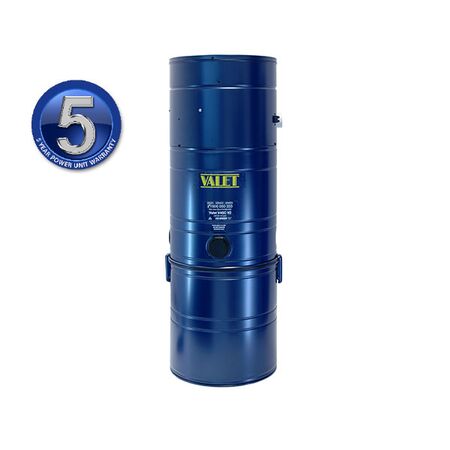

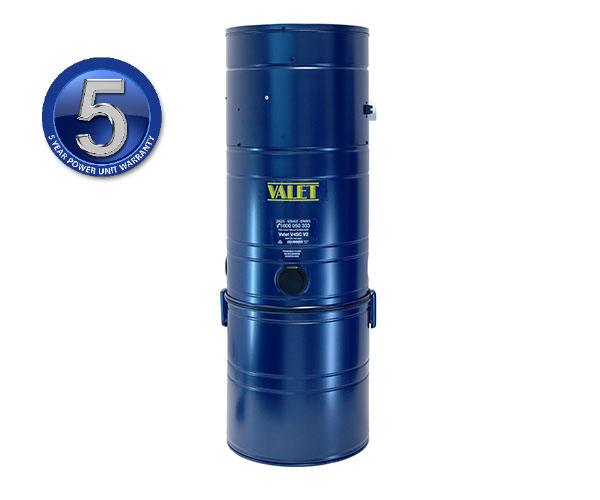

Central Vacuum Power Unit Bagless Washable Filter Valet
Valet central vacuum power unit features bagless technology, large capacity and a washable filter. Ideal for central vacuum installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Valet V4SC Power Unit, VAC-131, Bagless Ducted Vacuum Power Unit
Technical Specifications
- Model: V4SC.2
- SKU: VAC-131
- Filtration: Bagless washable cloth filter
- Motor: Ametek 122259
- Peak Current: 7.2 A
- Flow Type: 8.4-inch bypass
- Vacuum: 3,695 mm water lift
- Air Power: 716–682 air watts
- Noise Level: 76 dB
- Airflow: 143.2 CFM
- Recommended Maximum Installation Distance: 90 metres
- Motor Life: 1,500 hours
- Included: Muffler, 90° sweep elbow, mounting bracket, user manual and integrated mains cable
- Installation Location: Sheltered garage, carport or other covered area
- Dimensions (H x L x W): 1045mm x 355mm x 355mm
- Weight: 18 kg
Key Features
- Bagless operation with a large-capacity drop-down dirt canister
- Washable cloth filter reduces reliance on disposable vacuum bags
- On-body utility valve included
- Suitable for larger homes and offices with central vacuum ducting
- Supplied with mounting and exhaust fittings for installation
- Designed for central vacuum systems with up to 90 metres of recommended pipe distance
Professional Installation Requirements
- Installation should be performed by a suitably qualified central-vacuum installer and licensed electrician. The unit requires mains electrical connection, low-voltage switching and connection to central vacuum ducting. Install in a sheltered, accessible location with adequate ventilation.
Applications
- Residential central vacuum systems
- Larger homes with extensive ducted vacuum pipe runs
- Small offices and light-commercial premises
- Central vacuum retrofit installations
- Garage, carport or utility-room installations
Standards & Compliance
- AS/NZS 60335.2.2: Household and similar electrical appliances – particular requirements for vacuum cleaners
- AS/NZS 3820: Essential safety requirements for electrical equipment
Environmental Benefits
- Bagless operation reduces ongoing disposable vacuum-bag waste
- Washable filter can be cleaned and reused, reducing replacement consumables
- Durable power-unit construction and a stated 1,500-hour motor life can help reduce replacement frequency
Warranty Information
Five-year parts warranty for Valet central vacuum power units, with one additional year available when the warranty is registered. Warranty is for reasonable domestic use and excludes labour and commercial operation unless otherwise specified.
Available Now
Available through Valet and authorised Australian central-vacuum distributors and installers.
