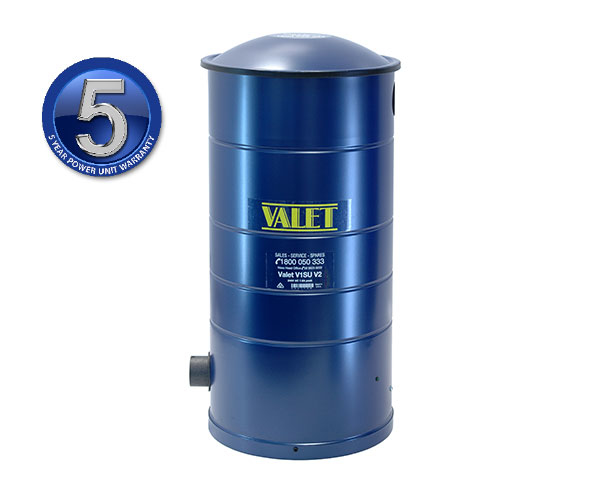

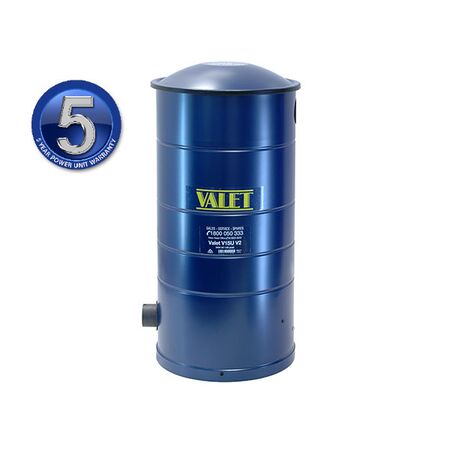

Central Vacuum Power Unit Soft-Start Control LED Indicators Valet
Valet central vacuum power unit features soft-start control, LED indicators and energy efficient operation. Ideal for central vacuum installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Valet V1SU Power Unit, Valet VAC-128 Ducted Vacuum Power Unit, Central Vacuum Motor Unit
Technical Specifications
- Model: V1SU.3
- SKU: VAC-128
- Filter: Max-Flo HEPA bag
- Motor: Ametek Ultra III Ultra 122286
- Peak Current: 7.6 A
- Flow Type: 5.7 inch flow-through
- Vacuum: 3,690 mm water lift
- Air Power: 694–655 air watts
- Air Flow: 132.7 CFM
- Noise Level: 65 dB
- Recommended Maximum Installation Distance: 60 m
- Motor Life: 500 hours
- Control: Integrated soft-start control board
- Indicators: LED status indicators
- Power Connection: Universal plug-in mains lead
- Installation Location: Sheltered garage, carport or covered area
- Dimensions (H x L x W): 700mm x 310mm x 310mm
- Weight: 14 kg
Key Features
- Soft-start control reduces motor start-up stress and supports prolonged motor life
- LED status indicators provide visible operating information
- Low standby current supports energy-efficient operation
- Max-Flo HEPA bag filtration helps contain fine dust and allergens
- Suitable for homes, offices and installations with pipe runs up to 60 metres
- Externally accessible fuse simplifies service access
- Compatible with Valet central vacuum hoses, wall inlets and accessories
- Includes muffler, mounting bracket, vacuum bag, bag adapter, bottom baffle and user manual
Professional Installation Requirements
- Installation involves 230–240 V mains electrical connection and low-voltage ducted vacuum wiring. Installation and electrical connection should be completed by a suitably qualified installer or licensed electrician in accordance with applicable Australian requirements.
Applications
- Residential central vacuum systems
- Office and light-commercial ducted vacuum installations
- Retrofit replacement of compatible Valet power units
- Centralised dust and allergen removal from homes and buildings
Standards & Compliance
- AS/NZS 60335.2.2:2018 household and similar electrical appliances — particular requirements for vacuum cleaners and water-suction cleaning appliances
- AS/NZS 3820 essential safety requirements for electrical equipment
- AS/NZS 3000 electrical installation requirements may apply to the mains connection
Environmental Benefits
- HEPA bag filtration supports improved indoor air quality by containing fine dust and allergens
- Low standby current helps reduce unnecessary energy consumption
- Soft-start control can reduce motor stress and extend service life, helping reduce replacement waste
- Replaceable filtration bags and serviceable components can extend the usable life of the power unit
Warranty Information
Five-year parts warranty on Valet central vacuum power units, with an additional one-year warranty available when the warranty is registered. Warranty conditions, installation requirements and exclusions apply.
Available Now
Available through Valet and authorised Australian central vacuum distributors and installers.
