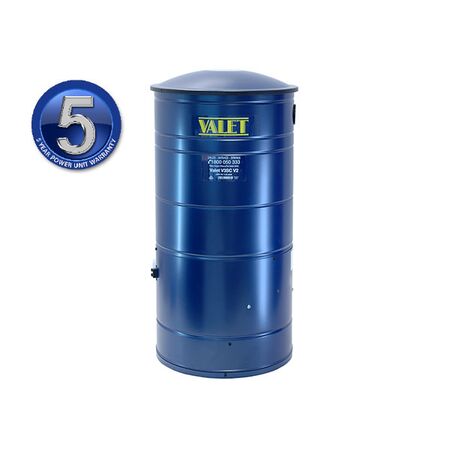

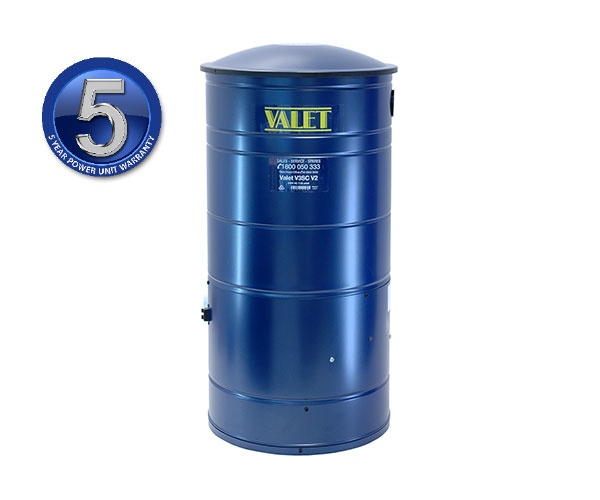

Central Vacuum Power Unit Up to 90m Pipe Distance Valet

BRAND: Ness
SKU: VAC-130
$1,993.80 List price: $2,658.30
+ −
30 Days Return Electricians Unlock Trade Access
Valet central vacuum power unit features up to 90m pipe distance and included accessories. Ideal for sheltered central vacuum installs.

Alternatively Known As: Valet V3SC.2 Ducted Vacuum Power Unit, Valet VAC-130 Central Vacuum Unit, Valet Trade Series Central Vacuum

Technical Specifications
  • Model: V3SC.2
  • SKU: VAC-130
  • Filtration: Max-Flo HEPA bag
  • Motor: Ametek 122259
  • Peak Current: 7.2 A
  • Flow Type: 8.4 inch bypass
  • Vacuum: 3695 mm water lift
  • Air Watts: 716–682
  • Noise Level: 76 dB
  • Airflow: 143.2 CFM
  • Recommended Maximum Pipe Distance: 90 m
  • Motor Life: 1500 hours
  • Included Accessories: Muffler, 90° sweep elbow, vacuum bag, bag adapter, mounting bracket, bottom baffle, user manual, integrated mains cable
  • Installation Location: Sheltered garage, carport or other covered area
  • Dimensions (H x L x W): 745mm x 355mm x 355mm
  • Weight: 10 kg
Key Features
  • Suitable for larger homes and offices with pipe runs up to 90 m
  • High-flow Ametek bypass motor
  • Max-Flo HEPA bag filtration
  • Includes mounting hardware and connection accessories
  • Integrated mains cable for straightforward power connection
  • Designed for sheltered installation
  • Includes a free fittings kit with elbows, stop coupling and 500 mm PVC pipe
Professional Installation Requirements
  • Installation should be completed by a suitably qualified central vacuum installer. Connection to mains electrical supply must be carried out by a licensed electrician in accordance with applicable Australian electrical installation requirements. Install the power unit in a sheltered, accessible location.
Applications
  • Central vacuum systems in larger residential homes
  • Office and light-commercial cleaning systems
  • New ducted vacuum installations
  • Replacement or upgrade of compatible Valet power units
  • Installations with total pipe distance up to 90 m
Standards & Compliance
  • AS/NZS 60335.2.2:2018 – applicable safety standard for household vacuum cleaners and water-suction cleaning appliances
  • AS/NZS 3000:2018 – electrical installation requirements applicable to the mains connection; installation must be completed by a licensed electrician
Environmental Benefits
  • Reusable central vacuum infrastructure can reduce the need for multiple portable vacuum appliances
  • HEPA bag filtration helps capture fine dust and particulates, supporting improved indoor air quality
  • Durable 1500-hour motor rating may extend service life and reduce replacement waste
  • Replaceable vacuum bags and serviceable components can reduce whole-unit disposal
Warranty Information

Five-year parts warranty for Valet central vacuum power units under reasonable domestic use. An additional one-year warranty is available at no charge when the warranty card is returned or the product is registered online. Labour, removal, reinstallation and transport costs may be excluded.

Available Now

Available through Valet and authorised Australian distributors, subject to distributor stock and lead times.
