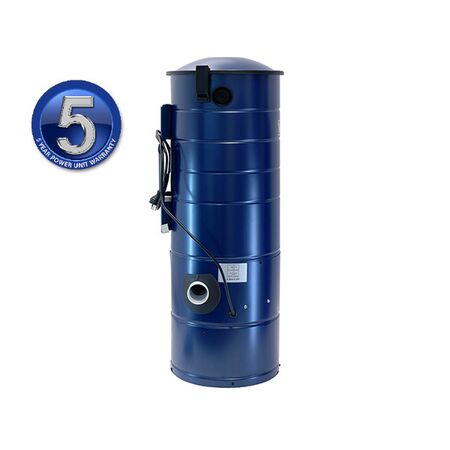

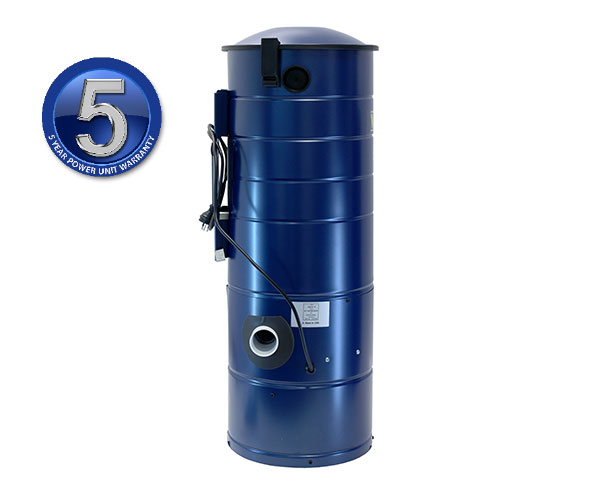

Central Vacuum Power Unit Weather Resistant Galvanised Body Valet
Valet weather resistant power unit features a galvanised painted body. Ideal for semi-exposed central vacuum installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Valet V2SCW Weather-Resistant Ducted Vacuum Unit, Valet VAC-134 Power Unit, Valet Galvanised Outdoor Central Vacuum
Technical Specifications
- Model: V2SCW
- SKU: VAC-134
- Filtration: Max-Flo HEPA bag
- Motor: Ametek 119963
- Peak Current: 7.5 A
- Flow Type: 7.2 inch bypass
- Vacuum: 2616 mm water lift
- Air Watts: 602–573
- Airflow: 141.1 CFM
- Noise Level: 76 dB
- Speed Control: Yes
- Recommended Maximum Pipe Distance: 60 m
- Recommended Coverage: Homes and offices up to 400 m²
- Body Construction: Galvanised painted steel
- Weather Resistance: Suitable for semi-exposed locations; not designed for direct rain
- Included Accessories: Muffler, sweep elbow, vacuum bag, bag adapter, mounting bracket, bottom baffle, manual, integrated mains cable and fittings kit
- Dimensions (H x L x W): 880mm x 310mm x 310mm
- Weight: 15 kg
Key Features
- Galvanised painted body for improved corrosion resistance
- Clip-down lid helps protect the unit in semi-exposed installations
- Designed for central vacuum systems in homes and offices
- Max-Flo HEPA bag filtration
- Long-life bypass motor with speed-control capability
- Full-height body supports greater vacuum bag expansion
- Fittings kit included for retrofit installations
- Integrated mains cable
Professional Installation Requirements
- Installation should be completed by a suitably qualified central-vacuum installer and licensed electrician. Provide weather protection and do not install where the unit is exposed to direct rain. Electrical connection and system wiring should comply with AS/NZS 3000 and applicable equipment safety requirements.
Applications
- Semi-exposed residential central vacuum installations
- Central vacuum systems for offices and light-commercial premises
- Retrofit ducted vacuum installations
- Homes and offices up to approximately 400 m²
- Central vacuum pipe runs up to approximately 60 m
Standards & Compliance
- AS/NZS 60335.2.69:2017 – Safety requirements for electrical motor-operated vacuum cleaners, including centrally-sited vacuum cleaners
- AS/NZS 3820 – Essential safety requirements for electrical equipment
- AS/NZS 3000 – Electrical installations and wiring requirements
Environmental Benefits
- Galvanised steel body is durable and recyclable at end of service life
- Long-life motor construction can reduce replacement frequency and associated material waste
- Central vacuum configuration places collected dust and exhaust away from occupied living areas
- HEPA bag filtration supports effective capture of fine dust and allergens
Warranty Information
Five-year warranty on the central vacuum power unit, with one additional year available free on returning the warranty card or registering the warranty online. Warranty conditions and exclusions apply.
Available Now
Available through Valet and authorised Australian central-vacuum distributors.
