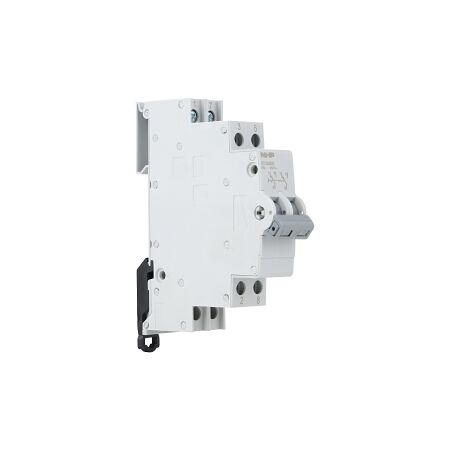

Changeover Switch 2-Pole 25A | 415V DIN Rail | IP20 by NHP
Changeover switch with 2-pole design and 25A current rating—ideal for industrial and commercial power distribution. Built for easy DIN rail installation, with IP20 protection and durable construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Changeover Switch 2Pole without Off 25A I II
Brand: NHP
SKU: DTCS2522
Alternatively Known As: Changeover Switch, Off-load Switch, DIN Rail Switch
Technical Specifications
- Number of Poles: 2
- Rated Current: 25 A
- Nominal Voltage: 415 V
- Mounting Method: DIN rail
- Material Housing: Plastic
- Wire Conductor Size (Rigid Cable): 1-6 mm²
- Wire Conductor Size (Flex Cable): 0.75-2.5 mm²
- Degree of Protection: IP20
- Number of Switch Positions: 2
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 86mm x 68mm x 18mm
- Weight: 0.5 kg
Key Features
- 2-pole design for reliable switching
- Rated current of 25A and nominal voltage of 415V
- DIN rail mounting for easy installation
- Mechanical life of 20,000 cycles
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations requiring changeover functionality
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Changeover Switch 2Pole without Off 25A I II is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
