TightSight™ Clamp Meter 600A AC/DC | True RMS | Non-Contact Voltage Detection | Dual Backlit Display by Ideal Electrical
The TightSight™ Clamp Meter measures AC/DC current up to 600 Amps and voltage up to 1000V, making it ideal for electrical testing in residential, commercial, and industrial settings. With its True RMS capability and patented dual backlit display, it ensures accurate readings and enhanced visibility, perfect for qualified electricians and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TightSight™ Clamp Meter 600A AC/DC
Brand: Ideal Electrical
SKU: IDL61-757
Alternatively Known As: Digital Clamp Meter, TRMS Clamp Meter, AC/DC Clamp Meter, Electrical Clamp Meter, TightSight Clamp Meter
Technical Specifications
- AC Current Range: 0-600 Amps
- Voltage Range: 0-1000 Volts AC/DC
- True RMS measurement for AC voltage and current
- Low Impedance AC Voltage (Lo Z) mode
- Frequency, resistance, continuity, capacitance, diode testing
- Temperature measurement with included K-Type thermocouple (°F/°C)
- Non-contact voltage detection from 40V to 600V

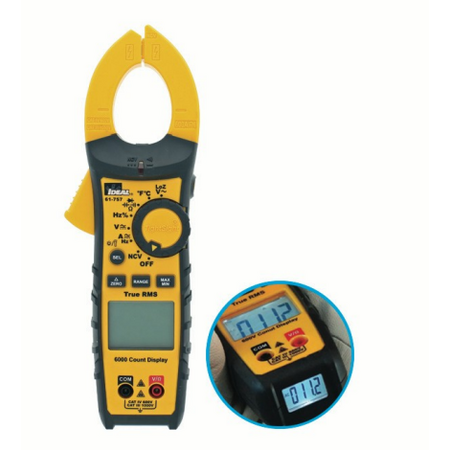

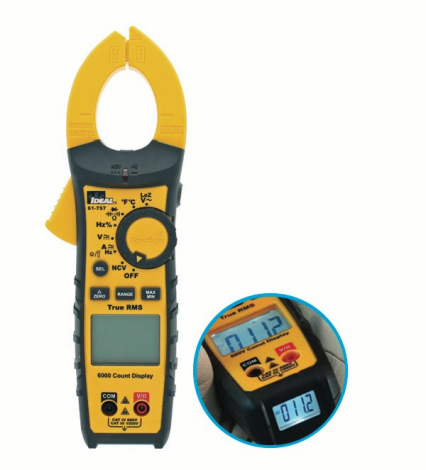

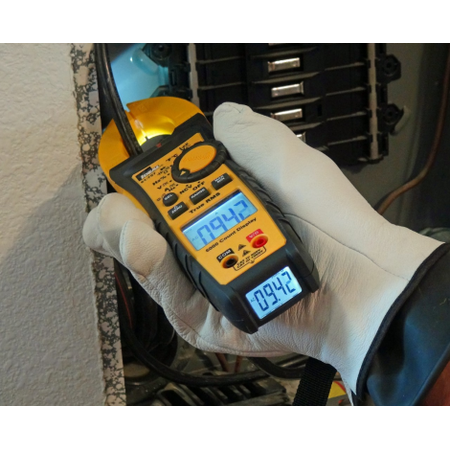

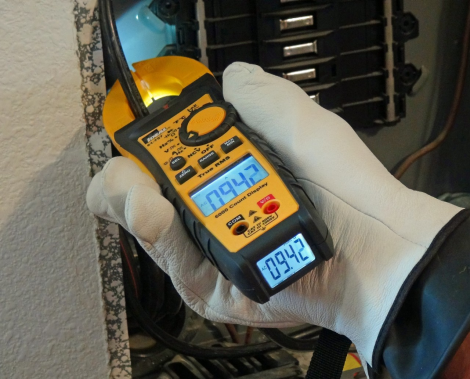

- Dual backlit LCD displays with patented TightSight® bottom display

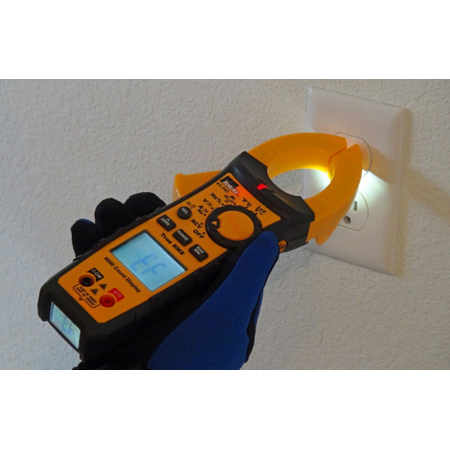

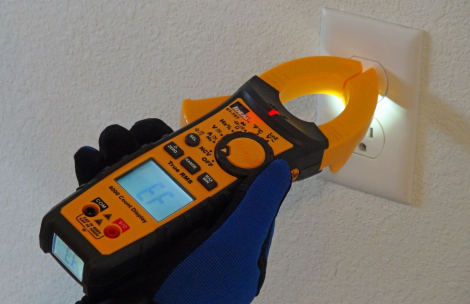

- Built-in flashlight and probe tip holder
- Over-molded industrial design with 2 m drop protection

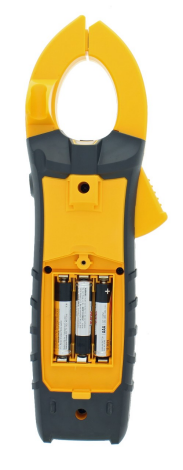

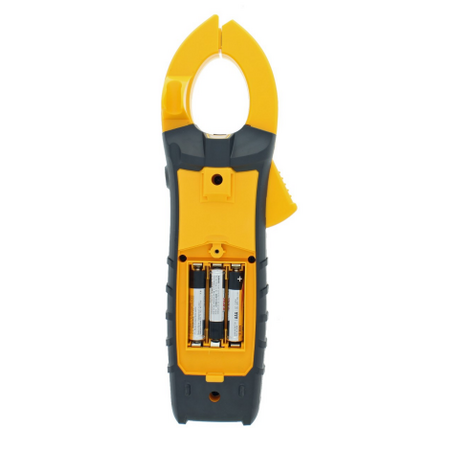

- Battery: 3 x 1.5V AAA included
- Auto-ranging, data hold, min/max, relative, zero, auto power off
- Dimensions (H x L x W): 180mm x 40mm x 70mm
- Weight: 0.3 kg
Key Features
- CAT IV 600 V / CAT III 1000 V rated for high safety standards
- Measures AC/DC current up to 600 Amps and voltage up to 1000V AC/DC

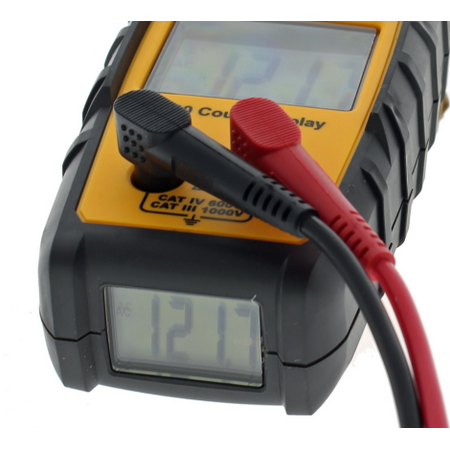

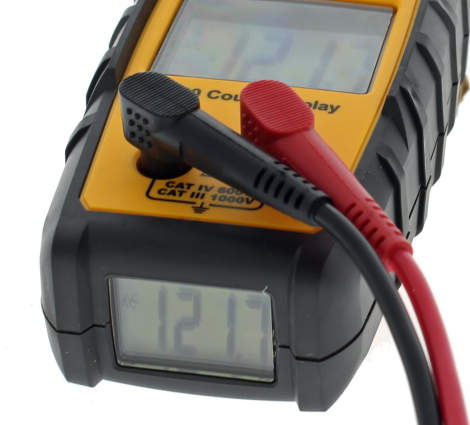

- Patented TightSight® dual backlit display for safer, easier reading
- True RMS for accurate measurements on non-linear signals
- Low Impedance AC Voltage mode to reduce false readings from ghost voltages
- Built-in flashlight and probe tip holder for convenience
- Non-contact voltage sensor with audible and visual alerts
- Over-molded industrial design with 2 m drop protection
- Includes test leads, K-Type thermocouple, batteries, and soft case
- Auto-ranging, data hold, min/max, relative, zero, and auto power off functions
Professional Installation Requirements
- No professional installation required; designed for use by qualified electricians and technicians for safe electrical measurements.
Applications

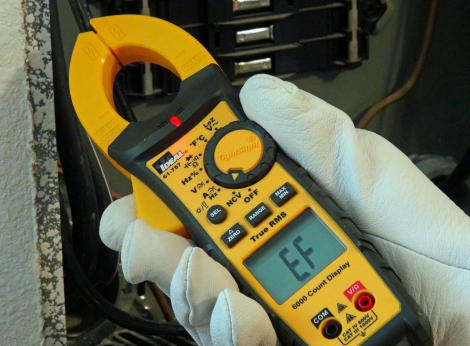

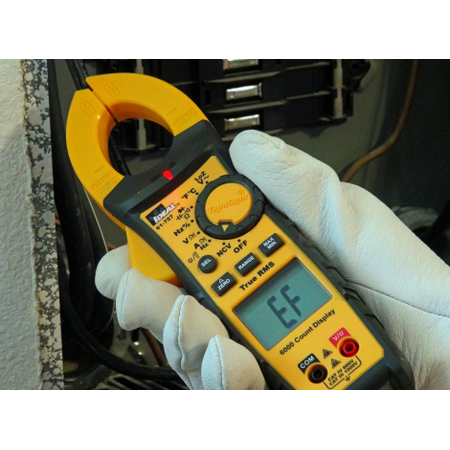

- Electrical testing and measurement in residential, commercial, and industrial environments
- Measuring AC/DC current up to 600 Amps
- Voltage measurement up to 1000V AC/DC
- Frequency, resistance, continuity, capacitance, diode testing
- Temperature measurement with K-Type thermocouple
- Non-contact voltage detection for safety checks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Auto power off feature conserves battery life and reduces waste
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Limited 2 Year warranty against manufacturing defects.
Available Now
The Ideal Electrical TightSight™ Clamp Meter 600A AC/DC is available now for immediate purchase. Ideal for electrical professionals requiring precise and safe current and voltage measurements.
