Clamp Meter 660A AC/DC | True RMS | Dual LCD Display | Ideal Electrical
The TightSight™ Clamp Meter 660A AC/DC with TRMS features a dual LCD display and true RMS accuracy—ideal for electrical testing in residential, commercial, and industrial settings. Built for professionals, it offers selectable alerts for hazardous voltages and a large jaw diameter for easy measurement in tight spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

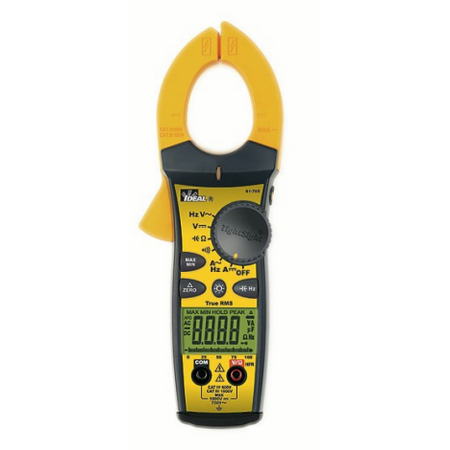

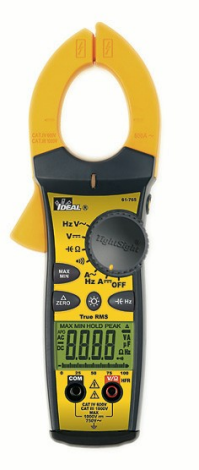

Product Name/Title: TightSight™ Clamp Meter 660A AC/DC w/TRMS
Brand: Ideal Electrical
SKU: IDL61-765
Alternatively Known As: Clamp Meter, Current Clamp Meter, AC/DC Clamp Meter, True RMS Clamp Meter, Electrical Clamp Meter
Technical Specifications
- AC Current Range: 0 to 660 Amps
- Voltage Measurement: AC/DC voltage
- Display: Dual LCD backlit display
- Battery Type: 1 x 9V battery
- Safety Ratings: CAT IV 600 V / CAT III 1000 V
- Audible Continuity: Yes
- Auto Ranging: Yes
- Data Hold: Yes
- Peak Hold, Max/Min Hold: Yes
- Auto Power Off: Yes
- Low Battery Indicator: Yes
- Test Leads: IEC61010-031 compliant
- Dimensions (H x L x W): 180mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features

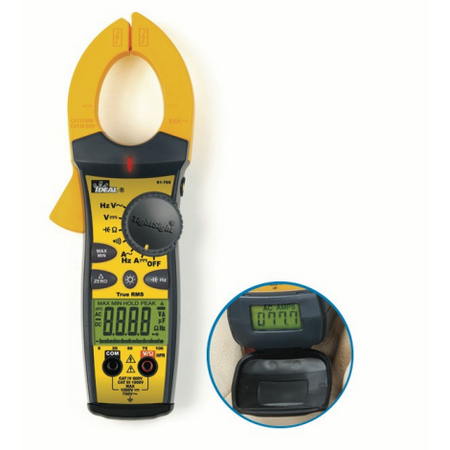

- Patented TightSight™ dual display for safe and easy current measurement
- True RMS for accurate readings of non-sinusoidal load currents
- Selectable audible and visual alerts for hazardous voltages
- Large jaw diameter for cables up to 51mm (2 inches)
- Backlit display with large numbers and icons
- Electronic overload protection on all ranges
- Hook tip for easier wire separation and tapered jaws for tight spaces
- Peak hold, max/min hold, data hold functions
- Auto power off and low battery indicator
- Test leads compliant with IEC61010-031
Professional Installation Requirements
- Professional use recommended; installation and measurements should be performed by qualified electricians to ensure safety and accuracy.
Applications

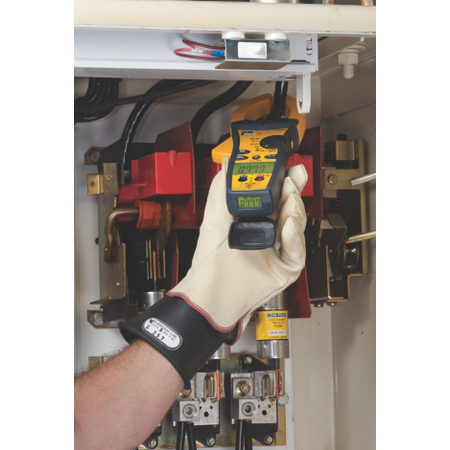

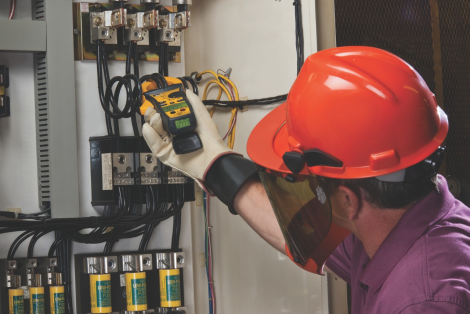

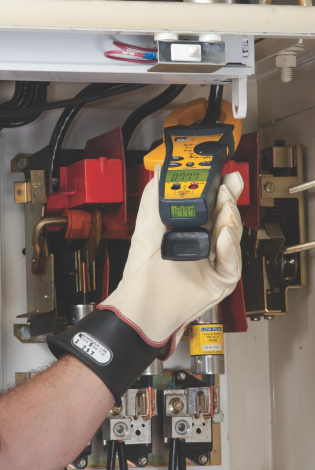

- Electrical circuit current measurement in confined, dimly lit, and hard-to-reach locations
- Troubleshooting electrical systems with min/max value readings
- Measuring AC/DC voltage and current in residential, commercial, and industrial settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Helps reduce energy waste by enabling accurate electrical measurements and troubleshooting
- Durable design reduces need for frequent replacements
Warranty Information
Limited 2 Year warranty.
Available Now
The Ideal Electrical TightSight™ Clamp Meter 660A AC/DC w/TRMS is available for immediate purchase, ideal for electrical testing and measurement in residential, commercial, and industrial applications.
