Coaxial Cable RG58C/U 5mm | MIL-C-17D Spec | Double Shielded | Flexible by Matchmaster
Coaxial cable with 5mm diameter and MIL-C-17D spec—ideal for telecommunications and networking. Built for RF applications, with double shielding and flexible design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

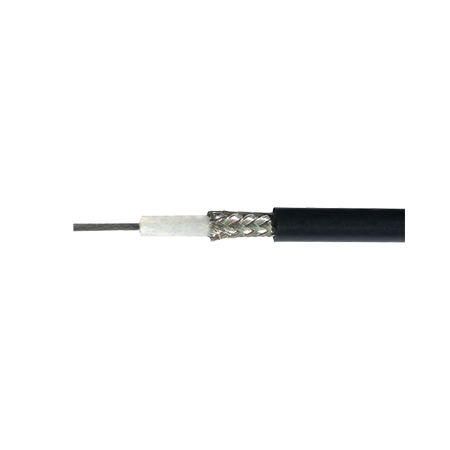

Product Name/Title: Coaxial Cable RG58C/U Type 5mm, Made to MIL-C-17D Spec (Cut to Length)
Brand: Matchmaster
SKU: 56MM-E58-1
Alternatively Known As: RG58 Coax Cable, 50 Ohm Coaxial Cable, CB Radio Cable, VHF/UHF Coax Cable, Radio Antenna Cable
Technical Specifications
- Centre Conductor: Twisted Annealed Tinned Copper Wire 19/0.18mm
- Insulation: Solid Polyethylene, 2.92mm ±0.05mm
- Shield: Tinned Copper Wire Braid 7/16/0.127mm, 3.49mm ±0.05mm
- Jacket: Non Contaminating UV Stable PVC, 4.95mm ±0.05mm
- Net Cable Weight: 3.6kg/100m
- Max Recommended Pulling Tension: 19kg
- Operating Temperature: -40° to +80°C
- Attenuation at 30MHz: 7.79 dB/100m
- Peak Power: 400W @ 150MHz
- Maximum Operating Voltage: 1400V RMS
- Nominal Inductance: 0.194 uH/m
- Nominal Delay: 5.05 ns/m
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.036 kg
Key Features
- RG58C/U coaxial cable suitable for radio transmission
- Can be cut to length in 1m increments
- Impedance: 50Ω nominal
- Velocity of propagation: 66%
- Frequency range: 30-1000MHz
- Capacitance: 98.4pF/M
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper cable handling and termination for optimal performance.
Applications
- CB Radio systems
- VHF and UHF radio systems with shorter cable runs
- Computer networking
- Amateur radio
- Base radio antenna stations
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable UV stable PVC jacket extends cable life reducing waste
- Cut to length option minimizes excess cable waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster Coaxial Cable RG58C/U Type 5mm is available now for immediate purchase. Ideal for radio communication and networking applications requiring reliable coaxial cable solutions.
