Commercial Wall Mounted Fan 400mm | IP55 Rated | Speed Control | Compact Design by Fantech
Commercial wall mounted fan with 400mm dimensions and IP55 rating—ideal for warehouses and industrial spaces. Built for robust air circulation, with speed control options for energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

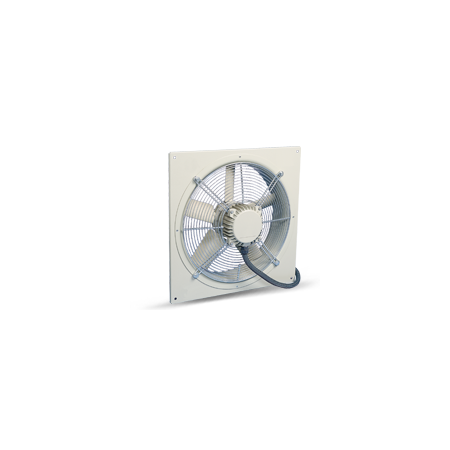

Product Name/Title: Compact 2000 commercial wall mounted fan 400mm 1ph
Brand: Fantech
SKU: CPE0404F
Alternatively Known As: Wall Mounted Axial Fan, Commercial Fan, Industrial Fan
Performance Curve
Technical Specifications
- Electricity supply: 230V single or 415V three-phase, 50Hz
- Motor type: Squirrel cage induction motor
- Bearings: Sealed for life, ball
- Maximum ambient temperature when speed controlled: 40°C
- Air flow tests to AS ISO5801:1997
- Noise tests to BS848:Part 2, 1985
- Dimensions (H x L x W): 400mm x 400mm x 400mm
- Weight: 10 kg
Key Features
- Robust high-quality construction with a square plate design.
- Inlet guard incorporated as standard for models 025 to 063.
- Capable of operating across a wide temperature range of -20°C to 70°C.
- IP55 rating for dust and water resistance.
- Speed control options available for energy management.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Commercial: Warehouses, factories, and industrial spaces
- General: Any location requiring effective air circulation
Standards & Compliance
- Complies with AS ISO5801 for air flow testing and BS848 for noise testing.
Environmental Benefits
- Energy-efficient design allows for better management of energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Compact 2000 Commercial Wall Mounted Fan 400mm 1ph is available now for immediate purchase. Ideal for commercial and industrial applications requiring effective air circulation.
