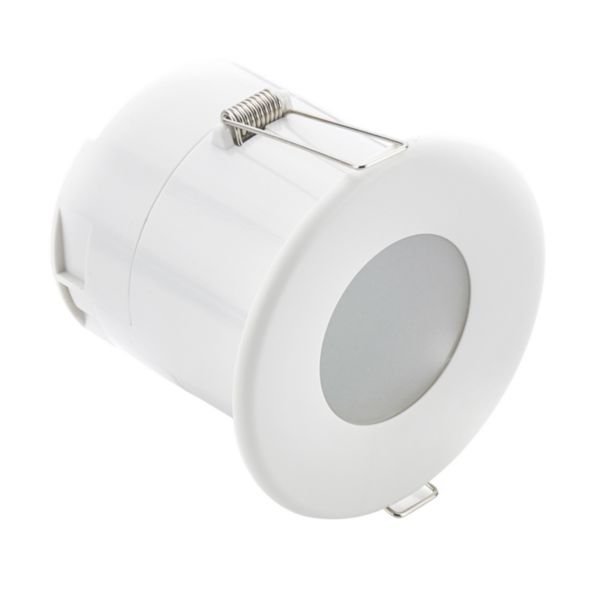

Compact IP40 Flush Mounted Ceiling Photocell Switch | DALI Dimming | Controls 10 Drivers | White Finish | @EA of 1 | by CP Electronics
The Compact IP40 Flush Mounted Ceiling Photocell Switch is designed for efficient lighting control, featuring DALI dimming capabilities for up to 10 drivers or ballasts. Ideal for commercial and industrial applications, this switch offers adjustable light levels and time delays to enhance energy efficiency and prevent nuisance switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact IP40 Flush Mounted Ceiling Photocell Switch | DALI Dimming | Controls 10 Drivers | White Finish | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: ALC-DD
Alternatively Known As: Ceiling Photocell Switch, DALI Photocell Sensor, Daylight Harvesting Sensor, Flush Mounted Photocell, Lighting Control Photocell
Technical Specifications
- Type of sensor: Built-in light sensor
- Contacts: 1 make contact (NO)
- Engaging brightness: 0-250 lx
- Switching-off brightness: 0-250 lx
- Switch-off delay: 99 seconds
- Switching-on delay: 0 seconds
- Max switching power: 2300 W
- Suitable for C-load: No
- Mounting method: Flush-mounted
- Material: Thermoplastic, halogen free
- Surface finishing: Matt
- Colour: White (RAL 9002)
- Nominal voltage: 220 V AC
- Max switching current (resistive load): 10 A
- Operating temperature: -10 to 35 °C
- IP rating: IP40
- Connection type: Push-in clamp
- Terminals capacity: 2.5 mm²
- Compatible with Apple HomeKit, Google Assistant, Amazon Alexa: No
- IFTTT support: No
- Degree of impact strength (IK): Other
- Dimensions (H x L x W): 65mm x 61mm x 76mm
- Weight: 0.1 kg
Key Features
- Flush or surface mounted design
- Adjustable preset light levels for precise control
- Adjustable time delay to prevent nuisance switching
- Dimming version maintains illuminance level
- Controls up to 10 dimming drivers/ballasts or 20 with relay disabled
- Compatible with DALI/DSI digital dimming systems
- Supports daylight linking and step-down illuminance
- Two channel flexibility and scene setting/recall
- Manual override via switch input
- Halogen free thermoplastic material
- IP40 rated for indoor use
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal device performance.
Applications
- Commercial and industrial lighting control
- Daylight harvesting for energy efficiency
- Ceiling mounted lighting automation
- Suitable for dimming ballasts and drivers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by adjusting artificial lighting based on natural light availability
- Supports sustainable building practices through daylight harvesting
- Helps lower carbon footprint by optimizing lighting usage
Warranty Information
Standard manufacturer warranty applies; typically 2 years against defects.
Available Now
The CP Electronics Compact IP40 Flush Mounted Ceiling Photocell Switch is available for immediate purchase, ideal for commercial and industrial lighting control applications.
