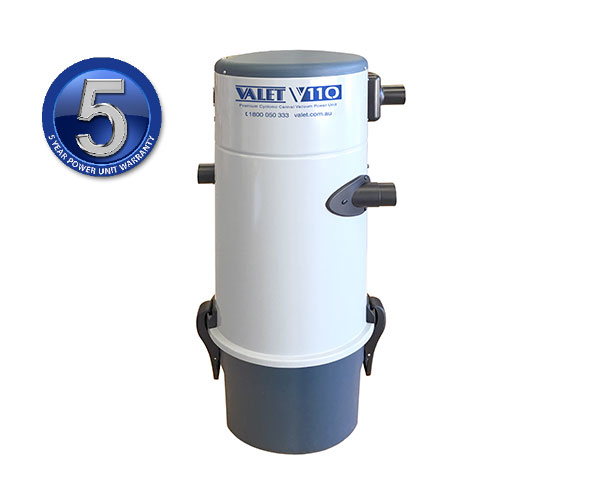

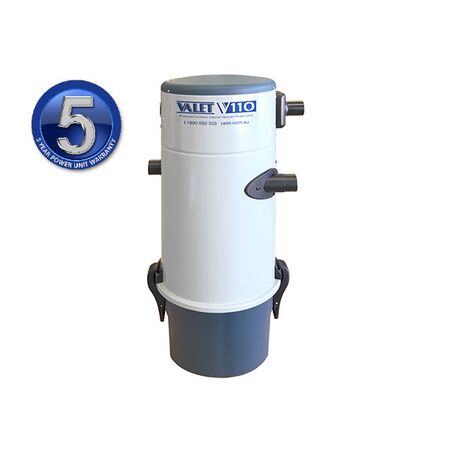

Cyclonic Central Vacuum Power Unit 15L Washable Filter Valet
Valet cyclonic power unit features 15L dust capacity, whisper-quiet operation and a washable filter. Ideal for central vacuum installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Valet V110 Cyclonic Power Unit, Valet VAC-157 Central Vacuum Motor, Valet 15 Litre Cyclonic Vacuum
Technical Specifications
- Model: V110
- Part Number: VAC-157
- Dust Container Capacity: 15 litres
- Filter: Washable and replaceable polyester filter
- Motor: Ametek N064300088
- Supply Voltage: 220–240 V AC
- Peak Current: 6.5 A
- Motor Power: 1650 W
- Air Watts: 653
- Air Flow: 115 CFM
- Vacuum: 3192 mm water lift (126 inches)
- Noise Level: 65 dB
- Flow Type: Flo-thru
- Soft Start: Yes
- Speed Control Capability: No
- Recommended Maximum Installation Distance: 50 metres
- Motor Life: 500 hours
- Construction: Metal body with plastic collection container
- Included Fittings: PVC elbows, stop coupling and 500 mm PVC pipe
- Dimensions (H x L x W): 900mm x 280mm x 280mm
- Weight: 16 kg
Key Features
- 15-litre dust container for domestic and office central vacuum installations
- Cyclonic operation with fixed washable polyester filter
- Whisper-quiet operation rated at 65 dB
- Soft-start motor technology
- Suitable replacement for many Valet and other-brand power units
- Fittings kit included for retrofit installations
- Designed for installation in a sheltered garage, carport or covered area
Professional Installation Requirements
- Installation involves central vacuum ducting, low-voltage control wiring and connection to a 220–240 V supply. Installation should be completed by a suitably qualified installer or electrician in accordance with the manufacturer's instructions and applicable Australian electrical requirements. The unit must be installed in a sheltered location and used for dry dirt and dust only.
Applications
- Domestic central vacuum systems
- Office and light commercial central vacuum installations
- Replacement of compatible Valet central vacuum power units
- Retrofit central vacuum installations with ducting up to 50 metres
Standards & Compliance
- AS/NZS 60335.1:2020 – general safety requirements for household and similar electrical appliances
- AS/NZS 60335.2.2 – applicable particular requirements for vacuum cleaners and water-suction cleaning appliances; product-specific conformity should be confirmed from the manufacturer's compliance documentation
Environmental Benefits
- Washable, replaceable polyester filter reduces reliance on disposable filter consumables
- Serviceable filter and motor design can extend product life and reduce replacement waste
- Centralised dust extraction keeps the motor and collected dust away from occupied living areas
Warranty Information
Five-year parts warranty on Valet central vacuum power units. Valet offers one additional year at no charge when the warranty card is returned or the warranty is registered online, subject to the manufacturer's terms and exclusions.
Available Now
Available through Valet and authorised Australian distributors, subject to distributor stock.
