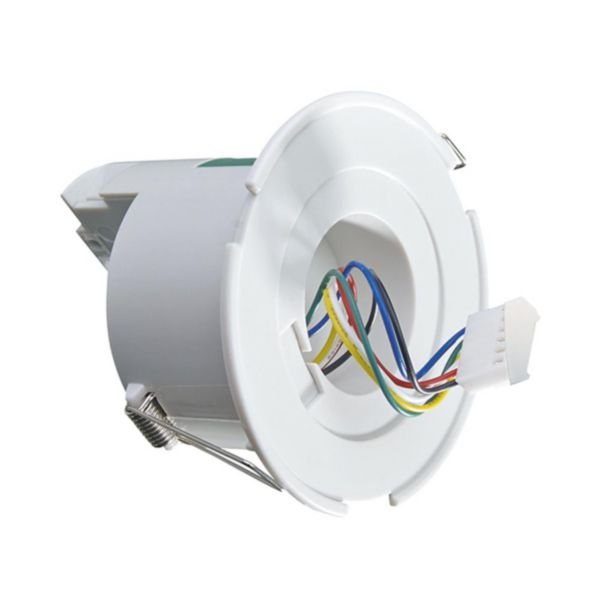

DALI Dimming PSU Presence Detection Relay | 40m Detection Range | Programmable via UHS5 | by CP Electronics

BRAND: CP Electronics
SKU: EBDHS-PSU-DD
$207.80 List price: $258.90
+ −
30 Days Return Delivery Options
The DALI Dimming PSU Presence Detection Relay is designed for high bay lighting control, featuring a groundbreaking detection range of up to 40m at a 15m mounting height. Ideal for warehouses and industrial settings, this relay supports energy-efficient lighting management with absence detection and programmable functionality, ensuring optimal performance and reduced energy consumption.

Product Name/Title: DALI Dimming PSU Presence Detection Relay | 40m Detection Range | Programmable via UHS5 | by CP Electronics

Brand: CP Electronics

SKU: EBDHS-PSU-DD

Alternatively Known As: DALI Dimming PSU Relay, Presence Detection Relay, High Bay PIR Detector, DALI Presence Sensor, CP Electronics DALI Relay

Technical Specifications
  • Detection range: up to 40m at 15m mounting height
  • Maximum mounting height: 20m
  • Detection technology: PIR with unique lens technology
  • Control type: DALI/DSI digital dimming ballasts
  • Programmable via UHS5 or UNLCDHS handsets
  • Absence detection with step-down and maintained illuminance
  • Adjustable masking shields included
  • Verify feature to reduce false triggers
  • Compatible with all lighting types
  • Two channel flexibility for scene setting and recall
  • Dimensions (H x L x W): 60mm x 120mm x 120mm
  • Weight: 0.3 kg
Key Features
  • Groundbreaking detection range up to 40m at 15m mounting height
  • Maximum mounting height up to 20m depending on operating parameters
  • Unique lens technology for high sensitivity within detection range
  • Adjustable masking shields to tailor detection zones
  • Verify feature reduces false triggering by requiring detection from multiple sensors
  • Fully programmable functionality via UHS5 or UNLCDHS handsets
  • Supports switching and dimming with lux level lensing
  • Absence detection functionality with step-down and maintained illuminance
  • Suitable for all lighting types with two channel flexibility
  • Scene setting and recall with lamp burn-in feature
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with DALI systems and high bay lighting controls to ensure compliance with electrical standards and optimal performance.
Applications
  • High bay lighting control in warehouses
  • Industrial and commercial high ceiling lighting
  • Presence and absence detection for energy-efficient lighting management
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Enables energy savings through presence and absence detection
  • Supports daylight harvesting to reduce unnecessary lighting
  • Programmable settings optimize lighting usage and reduce power consumption
Warranty Information

Standard manufacturer warranty applies; typically 3 years against manufacturing defects.

Available Now

The CP Electronics DALI Dimming PSU Presence/Absence Detection Relay is available for immediate purchase, ideal for high bay lighting control in warehouses and industrial environments.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
