DALI/DSI Digital Dimming Low Temp IP65 High Bay PIR Detector | Up to 40m Detection Range | Flush Mounted | @EA of 1 | by CP Electronics

BRAND: CP Electronics
SKU: EBDHS-DD-LT30
$659.70 List price: $822.10
+ −
30 Days Return Delivery Options

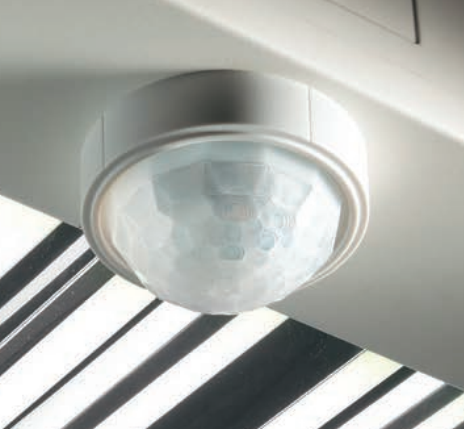

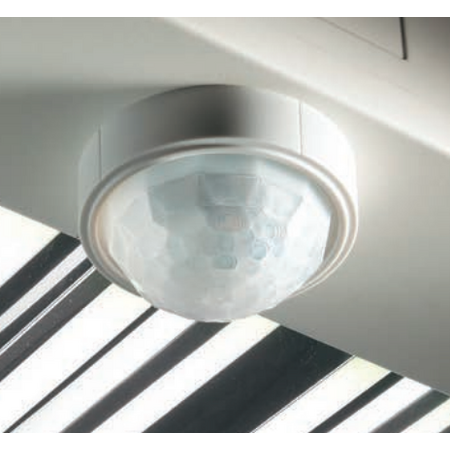

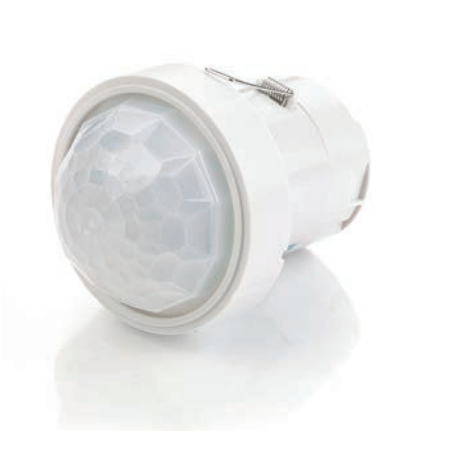

The DALI/DSI Digital Dimming Low Temp IP65 High Bay PIR Presence Detector is designed for high bay lighting control, featuring an impressive detection range of up to 40m and an operating temperature from -30ºC to 35ºC. Ideal for warehouses and cold storage, this sensor ensures energy savings through presence-based automation, making it perfect for demanding environments.

Product Name/Title: DALI/DSI Digital Dimming Low Temp IP65 High Bay PIR Detector | Up to 40m Detection Range | Flush Mounted | @EA of 1 | by CP Electronics

Brand: CP Electronics

SKU: EBDHS-DD-LT30

Alternatively Known As: High Bay PIR Presence Detector, Digital Dimming PIR Sensor, IP65 High Level Presence Detector, Low Temperature PIR Detector

Technical Specifications
  • Detection range: up to 40m diameter on floor
  • Mounting height: up to 20m (optimal 15m)
  • Operating temperature: -30ºC to 35ºC
  • IP rating: IP65
  • IK rating: IK05
  • Voltage: 230V AC, 50Hz
  • Max switching power: 2300W
  • Response value luminosity adjustable: 0-2000 lx
  • Switch-on delay: 1 second
  • Switch-off delay: 10 seconds
  • Standby consumption: 1.3 mA
  • Material: Thermoplastic, halogen free
  • Colour: White (RAL 9002)
  • Mounting method: Flush-mounted
  • Forced switch off: Yes
  • Number of switching zones: 1
  • Control current: 3.48 mA
  • Dimensions (H x L x W): 88mm x 112mm x 88mm
  • Weight: 0.3 kg
Key Features
  • Best in industry detection range up to 40m at 15m mounting height
  • Maximum mounting height up to 20m
  • Operating temperature range from -30ºC to 35ºC
  • IP65 rated for protection against dust and water
  • Unique lens technology for high sensitivity detection
  • Available in Analogue / Digital Dimming and Switching versions
  • Adjustable masking shields to tailor detection zones
  • Verify feature reduces false triggering
  • Compatible with UHS5 or UNLCDHS handsets for easy programming
  • Supports switching/dimming with lux level lensing and step-down illuminance
  • Maintained illuminance with daylight linking or harvesting
  • Two channel flexibility and scene setting/recall
  • Forced switch off and staircase light controller functionality
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal sensor performance.
Applications
  • High bay lighting control in warehouses and industrial spaces
  • Cold storage lighting control
  • Commercial and industrial lighting presence detection
  • Energy-saving lighting automation in demanding environments
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Enables energy savings through presence-based lighting control
  • Reduces unnecessary lighting usage, lowering power consumption
  • Supports daylight harvesting to optimize natural light use
Warranty Information

Standard manufacturer warranty applies; typically 2 years against defects.

Available Now

The CP Electronics DALI/DSI Digital Dimming Low Temp IP65 High Bay PIR Presence Detector is available for immediate purchase, ideal for industrial and commercial high bay lighting control applications.
