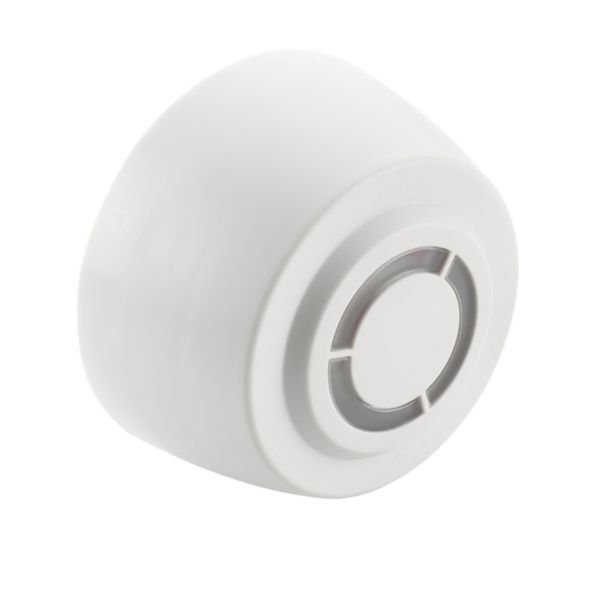

DALI/DSI Digital Dimming Microwave Presence Detector | IP40 Rated | Controls Up to 20 Drivers | Surface Mounted | @EA of 1 | by CP Electronics

BRAND: CP Electronics
SKU: MWS6SM-DD
$456.50 List price: $568.90
+ −
30 Days Return Delivery Options
The DALI/DSI Digital Dimming Microwave Presence Detector is designed for efficient lighting control in commercial spaces. With IP40 protection and the ability to manage up to 20 drivers or ballasts, this surface-mounted sensor utilizes high-frequency microwave technology for reliable presence detection. Ideal for energy-saving applications, it supports both switching and dimming, ensuring optimal illumination based on occupancy.

Product Name/Title: DALI/DSI Digital Dimming Microwave Presence Detector | IP40 Rated | Controls Up to 20 Drivers | Surface Mounted | @EA of 1 | by CP Electronics

Brand: CP Electronics

SKU: MWS6SM-DD

Alternatively Known As: Microwave Presence Detector, Digital Dimming Presence Sensor, Ceiling Mounted Occupancy Sensor, DALI Presence Detector, DSI Digital Dimming Sensor

Technical Specifications
  • Detection technology: High frequency microwave
  • Mounting method: Surface mounted
  • Degree of protection: IP40
  • Voltage: 230 V AC, 50 Hz
  • Max switching power: 2300 W
  • Detection angle: 360° horizontal
  • Max reach: 8 m sideways and frontally, 16 m diameter on floor
  • Response value luminosity adjustable: 0-2000 lx
  • Standby consumption: approx. 3.1 mA
  • Operating temperature range: -10 to 50 °C
  • Material: Thermoplastic, halogen free
  • Colour: White (RAL 9002)
  • Switch-on delay: 1 second
  • Switch-off delay: 10 seconds
  • Max duty cycle: 99 minutes
  • Mandatory neutral connection required
  • Dimensions (H x L x W): 95mm x 52mm x 95mm
  • Weight: 0.15 kg
Key Features
  • Surface mounted design with IP40 rating
  • Microwave presence/absence detection technology
  • Controls up to 20 drivers/ballasts
  • Programmable via UHS5 or UNLCDHS handsets
  • Supports switching and dimming with lux level lensing
  • Absence detection and maintained illuminance (daylight linking/harvesting)
  • Two channel flexibility with scene setting and recall
  • Compatible with all lighting types
  • Self-contained unit with easy installation via back plate
  • Infrared remote handset available for override
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal device performance.
Applications
  • Automatic control of lighting in commercial and office buildings
  • Heating and ventilation control based on presence detection
  • Energy saving through presence and absence detection in indoor environments
  • Suitable for use with DALI and DSI digital dimming ballasts
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Reduces energy consumption by automatically controlling lighting and HVAC based on occupancy
  • Supports daylight harvesting to minimize artificial lighting use
  • Helps lower carbon footprint through efficient energy management
Warranty Information

Standard manufacturer warranty applies; typically 2 years against defects.

Available Now

The CP Electronics DALI/DSI Digital Dimming IP40 Ceiling Surface Mounted Microwave Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
