DB Elite 375A 60 Pole | 400A Isolator | IP66 Surface Mount by Hager

BRAND: :hager
SKU: JPE6000S40TW
$3,699.70 List price: $4,610.30
Free pick up (over 25 kg and over 1 meter)
For delivery quote message

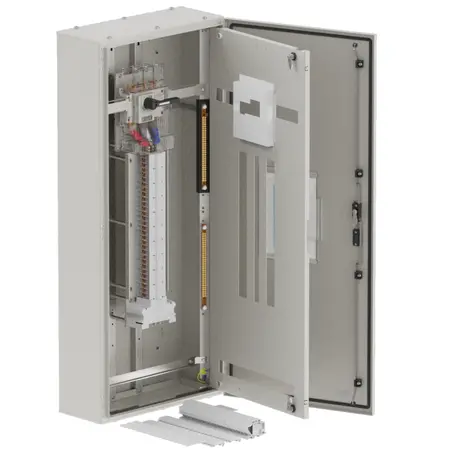

DB Elite with 375A capacity and 60 poles—ideal for industrial and large residential applications. Built for durability with IP66 protection and surface mounting, featuring a 3-point lever lock for security.

Product Name/Title: DB, elite, 375A, 60Pole, 400A Isolator-GR.1400x600x250mm

Brand: Hager

SKU: JPE6000S40TW

Alternatively Known As: Hager 400A Isolator, Hager DB Elite Panelboard, Hager Electrical Enclosure

Technical Specifications
  • Number of accessible phases: 60
  • Mounting: Surface mounting
  • Material: Steel, RAL code 7035, Light grey
  • Isolation class: I
  • Impact resistance: IK05
  • Locking type: 3-point lever, Key lock
  • Dimensions (H x L x W): 1400mm x 250mm x 600mm
  • Weight: 50 kg
Key Features
  • Rated current of 352A with a capacity for 38 modules.
  • IP66 ingress protection for enhanced durability.
  • Surface mounting for easy installation.
  • 3-point lever locking mechanism for added security.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Industrial facilities, large buildings
  • Residential: High-capacity homes requiring robust electrical solutions
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Commitment to reducing carbon footprint through sustainable practices.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager DB Elite 375A 60 Pole 400A Isolator is available now for immediate purchase. Ideal for commercial and residential high-capacity electrical applications.

Data Sheet (JPE6000S40TW, 167 Kb) [Download]

Certificate (reach_declaration_JPE6000S40TW1.pdf, 103 Kb) [Download]

Data Sheet (JPE6000S40TW1.webp, 449 Kb) [Download]

Certificate (6LE009746B_Performa_Elite-400_EN_02-400-2024_Leaflet_web.pdf, 15,769 Kb) [Download]

Certificate (23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
