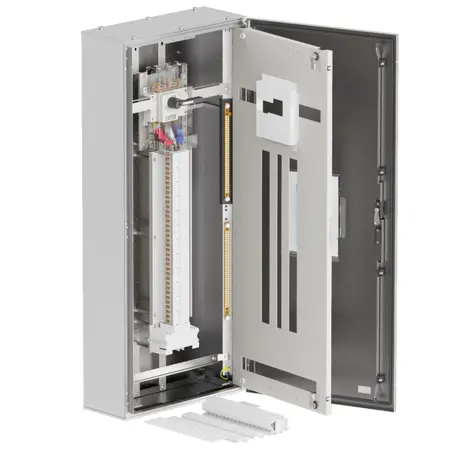

DB Elite 375A 72 Pole | 400A Isolator | IP66 Stainless Steel by Hager

BRAND: :hager
SKU: JPE7200S40TS
$4,571.30 List price: $5,845.20
Free pick up (over 25 kg)
For delivery quote message
DB Elite with 375A capacity and 72 poles, featuring a 400A isolator and IP66 rating—ideal for industrial and commercial electrical distribution. Built for durability with stainless steel construction and surface mounting design.

Product Name/Title: DB, elite, 375A, 72Pole, 400A Isolator-S.1400x600x250mm

Brand: Hager

SKU: JPE7200S40TS

Alternatively Known As: Hager 400A Isolator, Hager Panelboard, Hager Electrical Enclosure

Technical Specifications
  • Number of accessible phases: 72
  • Rated current: 352A
  • Mounting type: Surface mounting
  • Material: Stainless steel
  • Impact resistance: IK05
  • Ingress Protection (IP) class: IP66
  • Locking type: 3-point lever, Key lock
  • Dimensions (H x L x W): 1400mm x 250mm x 600mm
  • Weight: 50 kg
Key Features
  • Surface mounting design for easy installation.
  • Rated current of 352A with a capacity for 38 modules.
  • IP66 ingress protection for outdoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Industrial facilities, large buildings
  • General: Electrical distribution and isolation
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Designed to reduce carbon footprint through sustainable materials and practices.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager DB Elite 375A 72 Pole 400A Isolator is available now for immediate purchase. Ideal for commercial and industrial applications.

JPE7200S40TS (JPE7200S40TS, 169 Kb) [Download]

reach_declaration_JPE7200S40TS1.pdf (reach_declaration_JPE7200S40TS1.pdf, 103 Kb) [Download]

(6LE009746B_Performa_Elite-400_EN_02-400-2024_Leaflet_web.pdf, 15,769 Kb) [Download]

(23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
