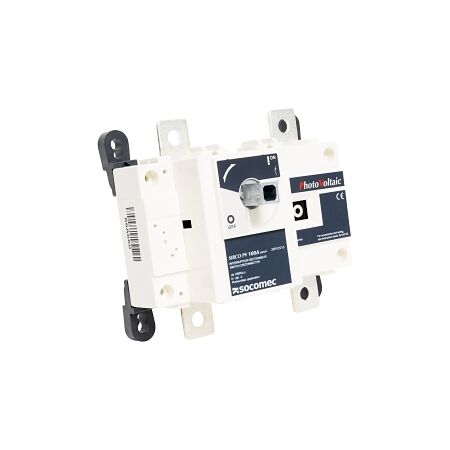

DC Load Break Switch 2P 100A 1000V | IP20 Rated | Compact Design by NHP

BRAND: NHP
SKU: 26PV2010
$407.60 List price: $541.30
+
DC load break switch with 100A and 1000V DC rating—ideal for industrial and commercial power distribution. Built for safety and efficiency, with IP20 protection and compact design for easy installation.

Product Name/Title: Socomec SIRCO DC Load Break Switch , 2P 100A 1000V DC

Brand: NHP

SKU: 26PV2010

Alternatively Known As: DC Load Break Switch, SIRCO DC Switch, 2 Pole DC Switch

Technical Specifications
  • Max Rated Operation Voltage: 1000 V DC
  • Rated Permanent Current: 100 A
  • Number of Poles: 2
  • Rated Insulation Voltage: 1500 V
  • Rated Short Time Withstand Current: 5 kA
  • Degree of Protection: IP20
  • Suitable for Distribution Board Installation: Yes
  • Interlockable: Yes
  • Dimensions (H x L x W): 160mm x 95mm x 180mm
  • Weight: 1.8 kg
Key Features
  • Rated for 100A and 1000V DC operation.
  • IP20 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: DC power distribution systems
  • Commercial: Renewable energy systems, battery storage applications
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for efficient power management in renewable energy applications.
Warranty Information

Standard warranty applies.

Available Now

The Socomec SIRCO DC Load Break Switch is available now for immediate purchase. Ideal for industrial and commercial DC power applications.

Non-Returnable & Non-Cancellable

26PV2010-AU-SIRCO-DC-Switch-2P-Datasheet.pdf (26PV2010-AU-SIRCO-DC-Switch-2P-Datasheet.pdf, 282 Kb) [Download]
