Digital AC Clamp Meter | 2000A Current Measurement | 750V AC & 1000V DC | LCD Display by Eaton

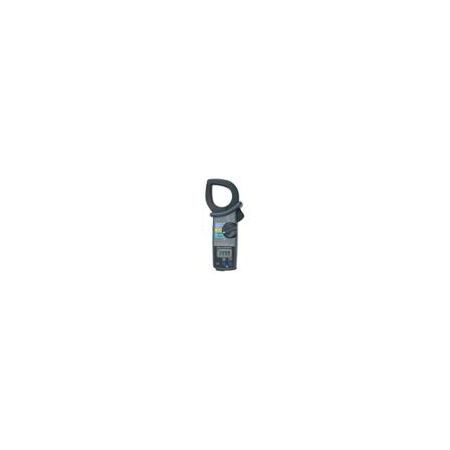

The Kyoritsu 2002PA AC clamp meter features a digital LCD display, measuring AC current up to 2000A and AC voltage up to 750V. Ideal for electrical testing and maintenance in industrial environments, it includes a continuity buzzer and auto power save function for enhanced usability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital AC Clamp Meter | 2000A Current Measurement | 750V AC & 1000V DC | LCD Display by Eaton
Brand: Eaton
SKU: 02002A029D
Alternatively Known As: Digital AC Clamp Meter, 2000A Clamp Meter, Kyoritsu 2002PA Meter, AC Current Clamp Meter
Technical Specifications
- Display type: LCD
- Input frequency range: 40 Hz to 1 kHz
- Voltage measurement resolution: 0.1 V
- Current measurement resolution: 0.1 A
- Resistance measurement max: 400 kΩ
- AC voltage measurement max: 750 V
- DC voltage measurement max: 1000 V
- AC current measurement max: 2000 A
- Measurement capabilities: Continuity buzzer
- Test meter functions: Auto power save, peak hold, data hold
- Safety category rating: CATIII 600V, CATII 1000V
- Recording mode: Normal
- Dimensions (H x L x W): 247mm x 105mm x 49mm
- Weight: 0.47 kg
Key Features
- Digital LCD display for clear readings
- Measures AC current up to 2000A
- AC voltage measurement up to 750V
- DC voltage measurement up to 1000V
- Resistance measurement up to 400 kΩ
- Continuity buzzer for circuit testing
- Auto power save, peak hold, and data hold functions
- Safety category rating CATIII 600V and CATII 1000V
- Input frequency range from 40 Hz to 1 kHz
- Includes test leads, carry case, batteries, and instruction manual
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and trained personnel.
Applications
- Electrical testing and measurement in industrial and commercial environments
- Maintenance and troubleshooting of electrical systems
- Measurement of AC current up to 2000A
- Voltage and resistance testing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Auto power save function reduces battery consumption and extends device life
- Durable design reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Kyoritsu 2002PA AC Clamp Meter is available now for immediate purchase. Ideal for electrical testing, maintenance, and troubleshooting in industrial and commercial settings.
