Digital AC Clamp Meter | 45.7 cm Flexible Clamp | True RMS Measurement | CAT IV 600V Safety | by Wattmaster
The Digital AC Clamp Meter with a 45.7 cm flexible clamp is designed for accurate AC current measurements in hard-to-reach areas. Featuring True RMS measurement, a backlit LCD display, and CAT IV 600V safety ratings, this meter is perfect for electrical testing in residential, commercial, and industrial settings. Its durable design ensures reliability, while the auto power off feature conserves battery life, making it an essential tool for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital AC Clamp Meter | 45.7 cm Flexible Clamp | True RMS Measurement | CAT IV 600V Safety | by Wattmaster
Brand: Wattmaster
SKU: A-CL150
Alternatively Known As: Flexible AC Current Clamp Meter, Digital Clamp Meter, AC Electrical Tester, True RMS Clamp Meter
Technical Specifications
- Current Measurement Range: 0.01 to 3000A AC
- Clamp Jaw Size: 18 inches (45.7 cm) flexible clamp
- Display: Backlit LCD with 3000 count
- Safety Ratings: CAT IV 600V, CAT III 1000V
- Functions: Auto-ranging, Max/Min, Hold, Auto power off
- Drop Protection: 2 meters (6.6 feet)
- Power Source: 2 x AAA batteries
- Dimensions (H x L x W): 27mm x 267mm x 105mm
- Weight: 0.167 kg
Key Features

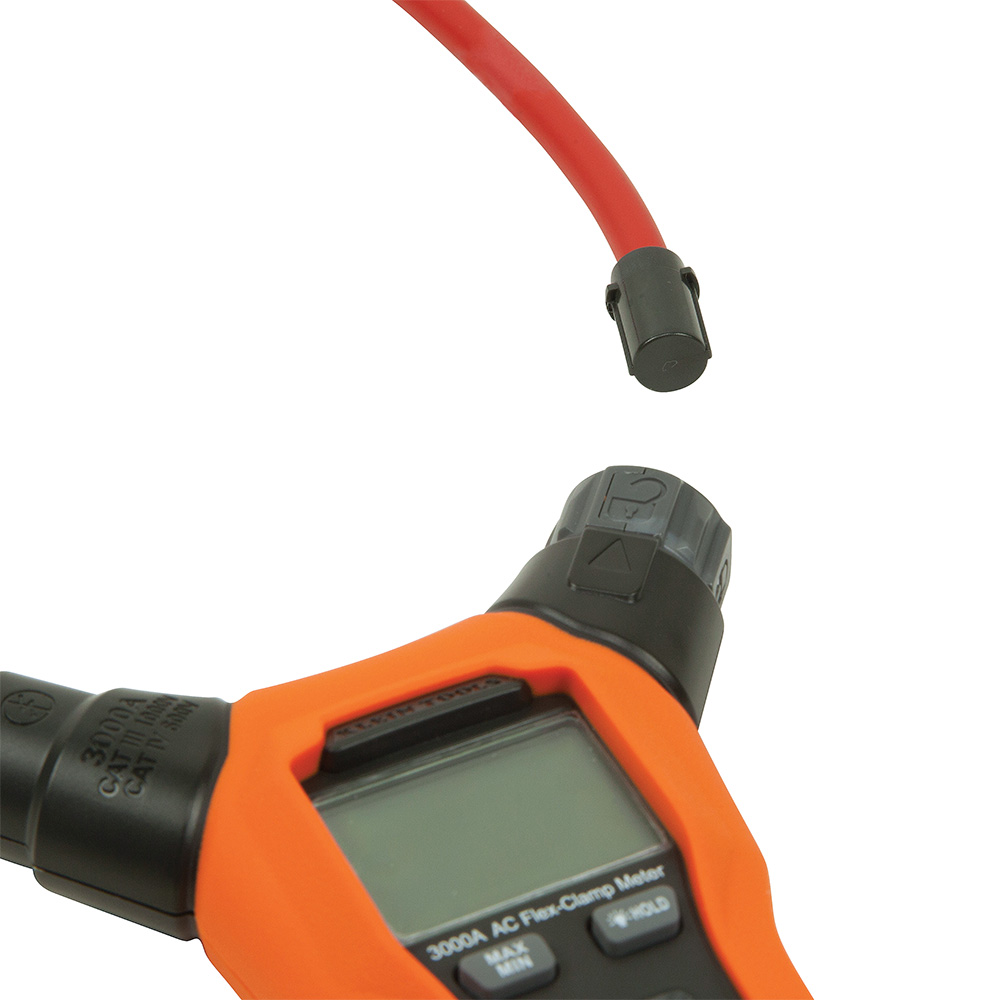

- 18 inch (45.7 cm) flexible clamp for easy access to difficult areas
- True RMS measurement for accurate AC current readings
- CAT IV 600V and CAT III 1000V safety ratings
- Backlit LCD display with 3000 count for clear visibility
- Auto power off after 15 minutes to conserve battery life
- Max/Min, Hold, Auto-Ranging, and Low Battery indicators
- Durable design with drop protection up to 2 meters
Professional Installation Requirements
- No professional installation required; however, users should have basic electrical knowledge and follow safety guidelines when using the meter.
Applications
- Electrical testing and measurement in residential, commercial, and industrial settings

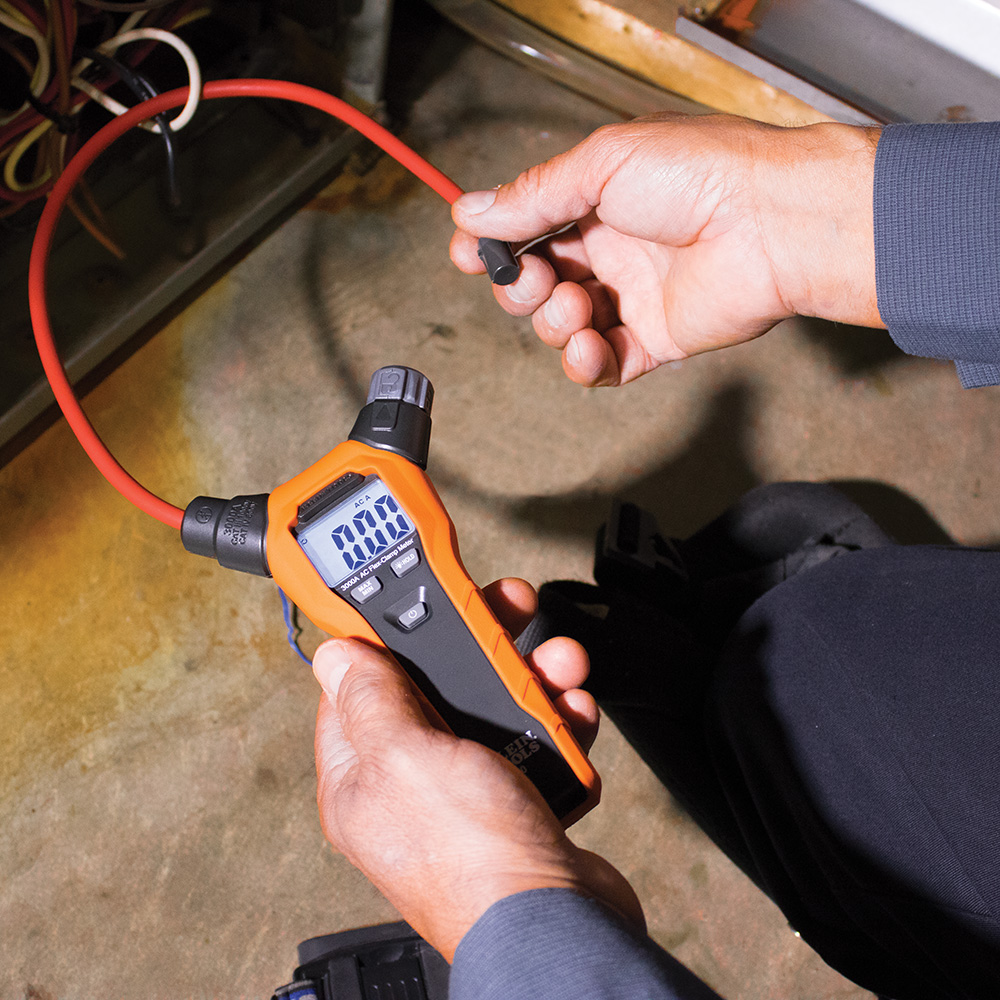

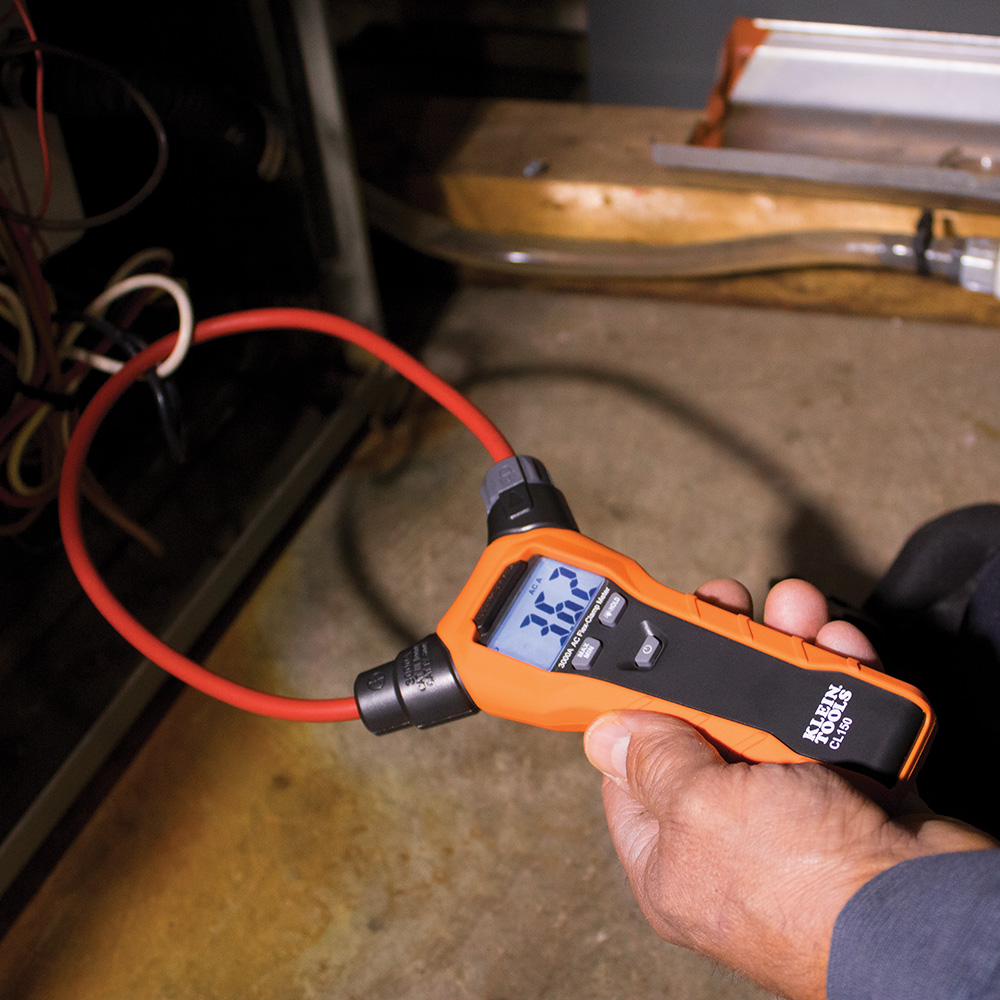

- Accessing and measuring AC current in hard-to-reach areas such as bundled wires, PLC cabinets, and electrical panels
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Auto power off feature conserves battery life, reducing battery waste
- Durable construction extends product lifespan, minimizing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Digital AC Clamp Meter with 45.7 cm Flexible Clamp is available for immediate purchase, ideal for electrical professionals and technicians requiring accurate AC current measurements in challenging locations.
