Digital Clamp Meter 2000A AC/DC | 750V AC & 1000V DC | LCD Display & CAT IV Safety by Eaton

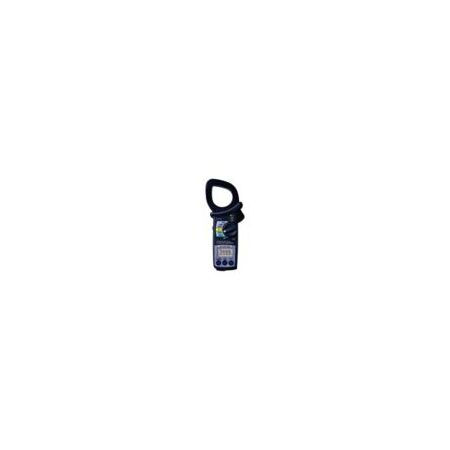

The Kyoritsu 2003A digital clamp meter measures up to 2000A AC/DC, with a maximum voltage of 750V AC and 1000V DC. Ideal for electrical testing and maintenance in industrial and commercial settings, it features a clear LCD display and a CAT IV 600V safety rating for high voltage environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Clamp Meter 2000A AC/DC | 750V AC & 1000V DC | LCD Display & CAT IV Safety by Eaton
Brand: Eaton
SKU: 02003A029F
Alternatively Known As: Digital Clamp Meter, AC/DC Clamp Meter, 2000A Clamp Meter, Electrical Current Meter
Technical Specifications
- Current Measurement Max: 2000 A AC/DC
- Voltage Measurement Max: 750 V AC, 1000 V DC
- Display Type: LCD
- Detection Method: Averaging
- Current Measurement Resolution: 0.1 A
- Safety Category Rating: CAT III 1000V, CAT IV 600V
- Certifications: IEC 61010-2-032, IEC 61010-1
- Dimensions (H x L x W): 250mm x 105mm x 49mm
- Weight: 0.53 kg
Key Features
- Digital clamp meter with 2000A AC/DC current measurement capability
- CAT IV 600V and CAT III 1000V safety rating for high voltage environments
- LCD display for clear readings
- Averaging detection method for accurate current measurement
- Includes test leads, carry case, batteries, and instruction manual
Professional Installation Requirements
- Professional use recommended; installation and operation should be performed by qualified electricians or technicians.
Applications
- Electrical testing and measurement for industrial and commercial applications
- Maintenance and troubleshooting of electrical systems
- Measurement of AC and DC current and voltage in power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables accurate electrical measurements to improve energy efficiency and system performance
- Durable design reduces waste and extends product lifecycle
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.
Available Now
The Kyoritsu 2003A Clamp Meter AC/DC is available now for immediate purchase. Ideal for electrical testing, maintenance, and troubleshooting in industrial and commercial settings.
